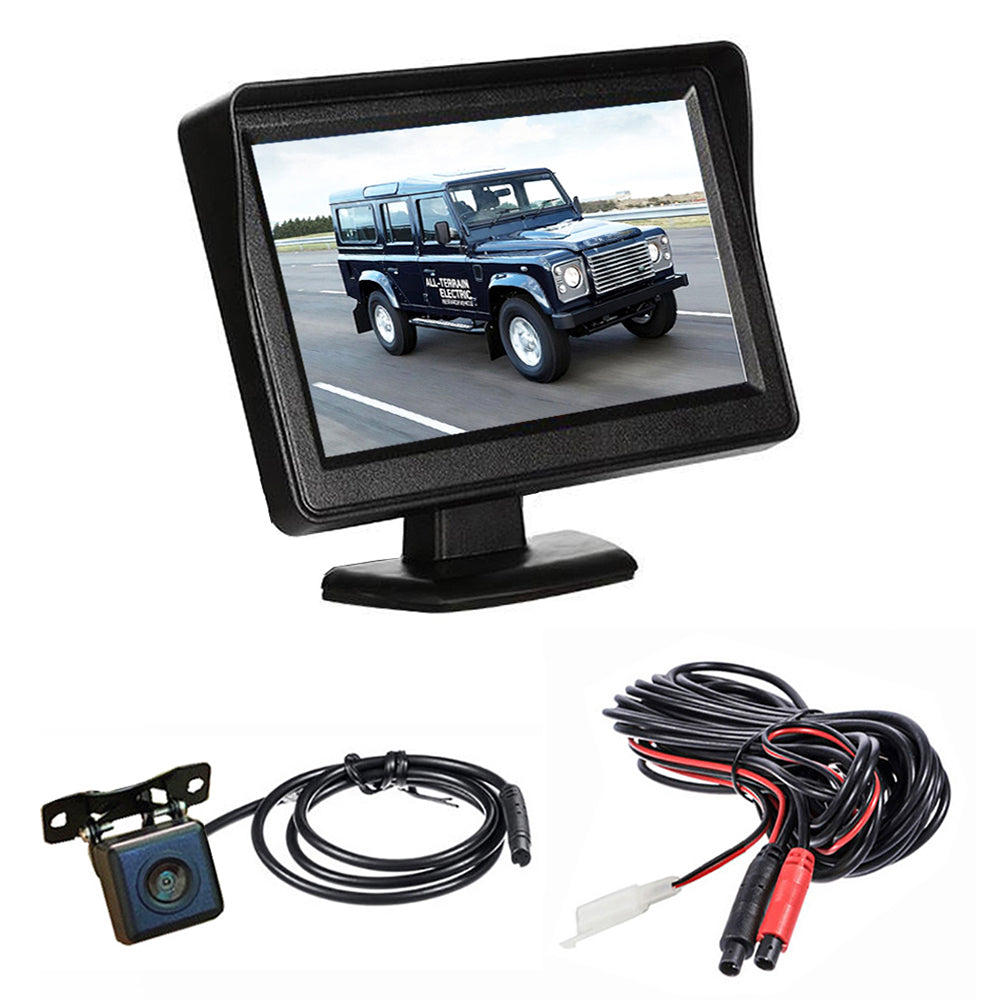

RH-302 4.3-inch TFT LCD Video Display Monitor with HD Square Rear View Camera Parking and Reverse System Kit

• 4.3-inch color TFT LCD car rearview monitor with video inputs, perfect compatibility with car rearview cameras
• Support for car cameras/DVD/monitor cameras/set-top boxes/satellite receivers/other video devices
• Equipped with video input port, the screen will be black if there is no signal input

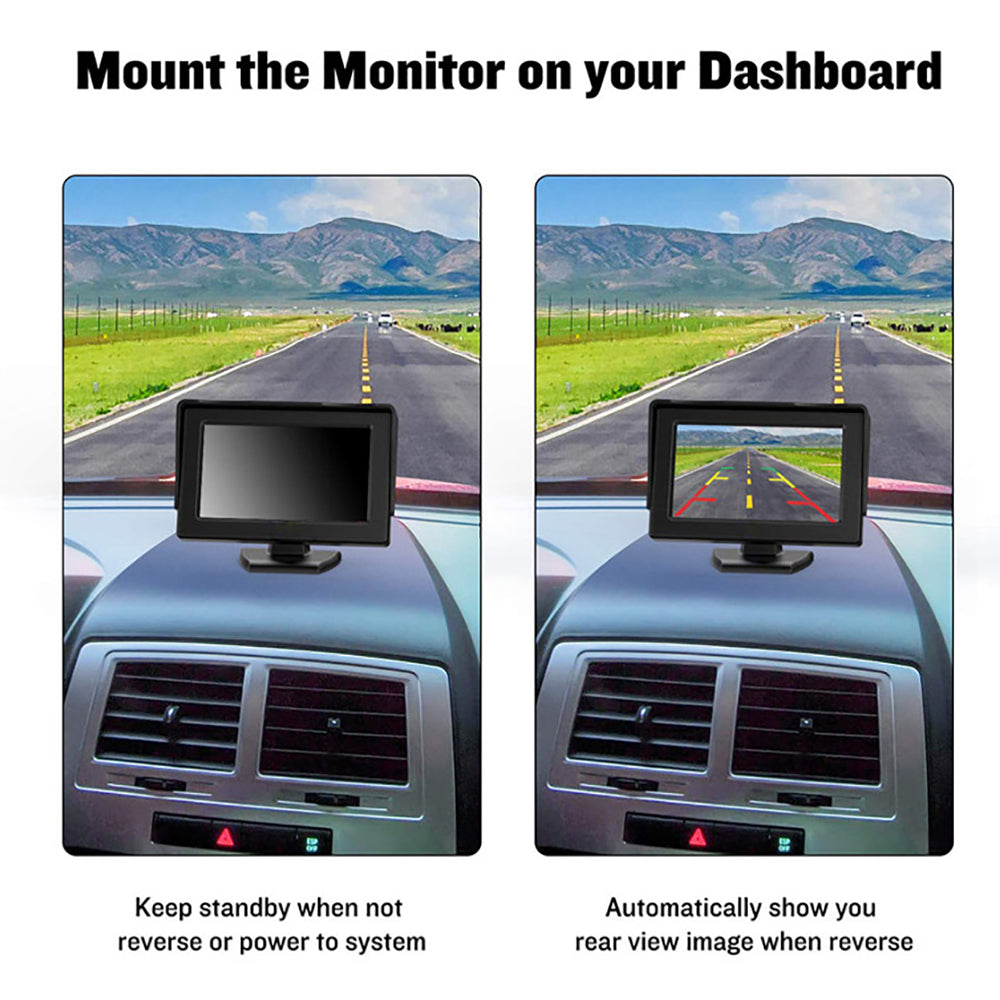

• Can be connected to the backup system, and the display signal will automatically wake up when reversing
• The display will automatically turn off after the backup is completed for more user-friendliness
• Suitable for small cars, business vehicles, pickup trucks, trucks, construction vehicles, agricultural vehicles, and electric vehicles

Specifications:

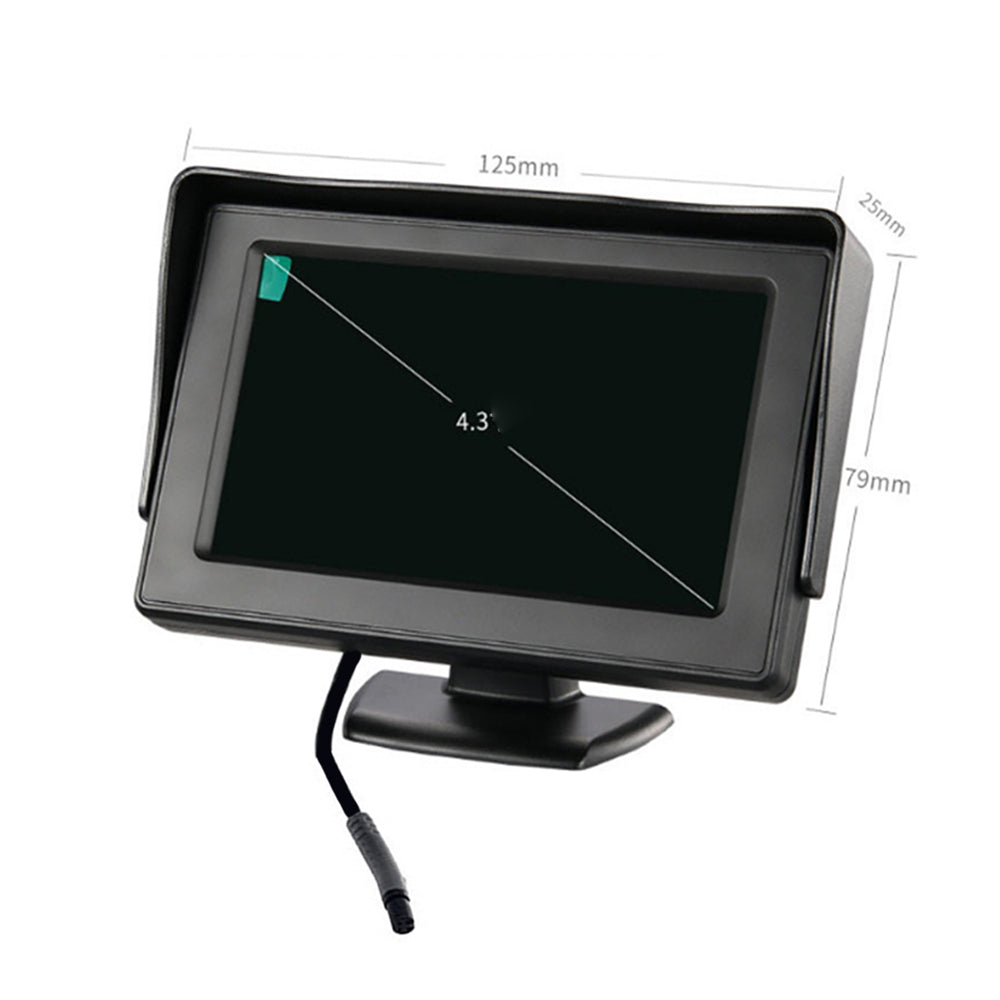

• Display Size: 4.3 inches
• Screen: 16:9, TFT-LCD HD screen, making the image clearer and more colorful
• Resolution: 480 (H).x.365 (V)
• Power: ≤ 3W. Ultra-low power consumption to prevent overheating

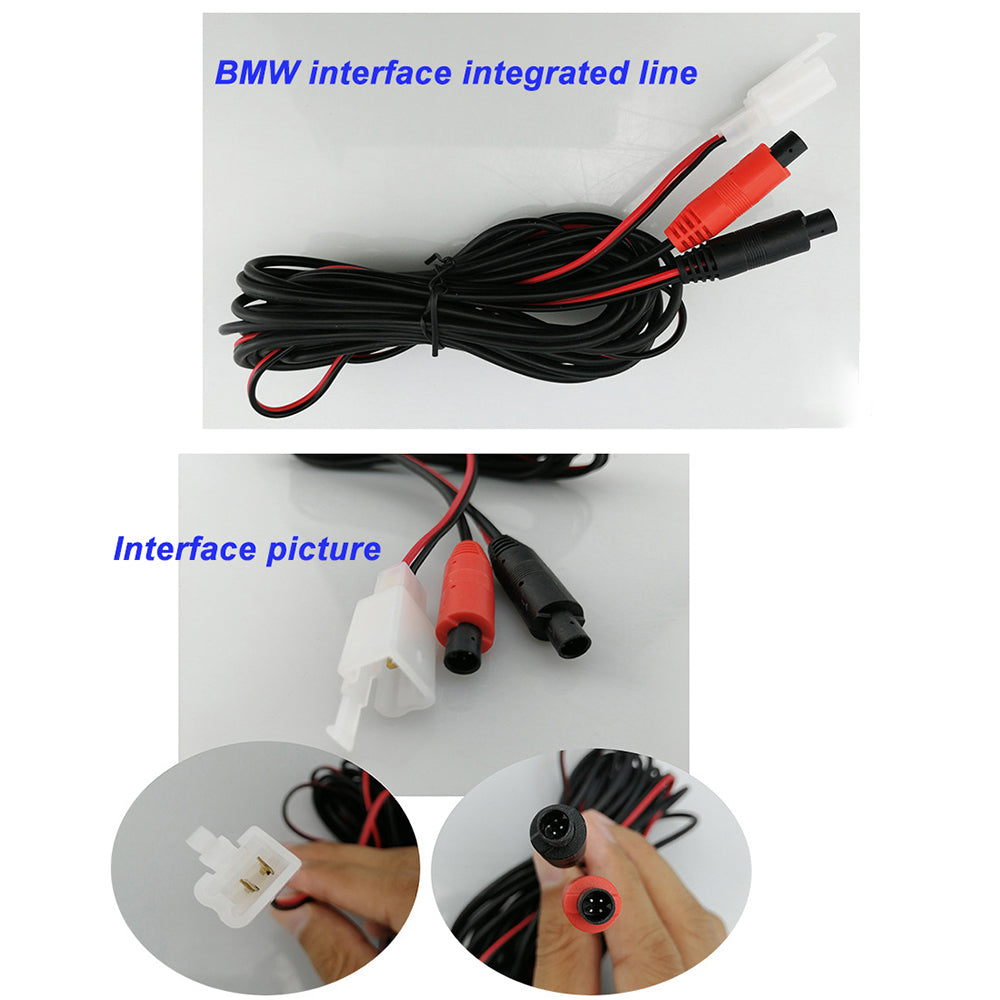

• Video Input: B-M-W integrated video cable, easy to install, can be used after connecting
• Operating Temperature: -10℃~+50℃
• Contrast: 300:1
• Working Voltage: DC 9V-36V
• On/Off: Automatic turn-on with signal input

HD Square Camera:

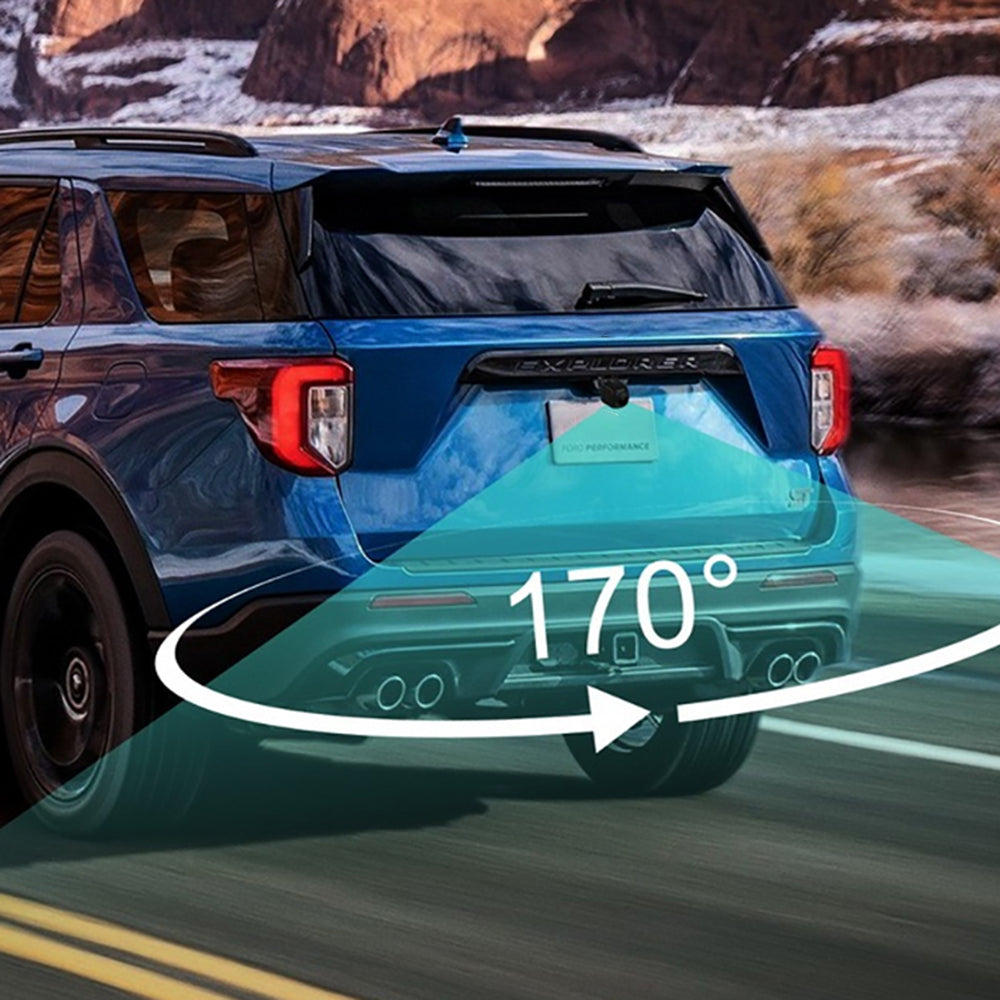

• Waterproof Rear Camera Angle: 170°
• Image Chip: 1/3 inch color CMOS PC1030
• TV System: NTSC / PAL
• Pixels: 628*582 pixels
• Power: DC 12V
• Working Temperature: -40℃~80℃
• Video Output: RCA Connector 1.0VP-P, 75Ohm
