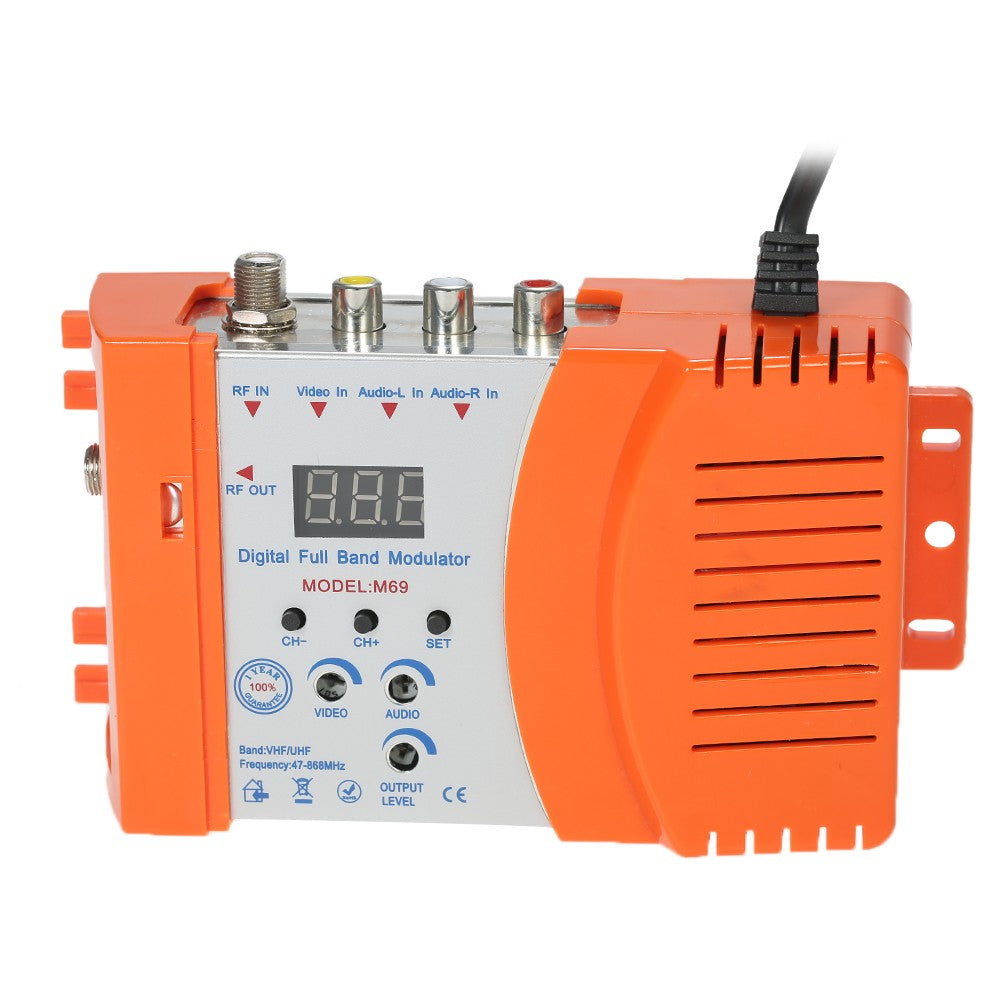

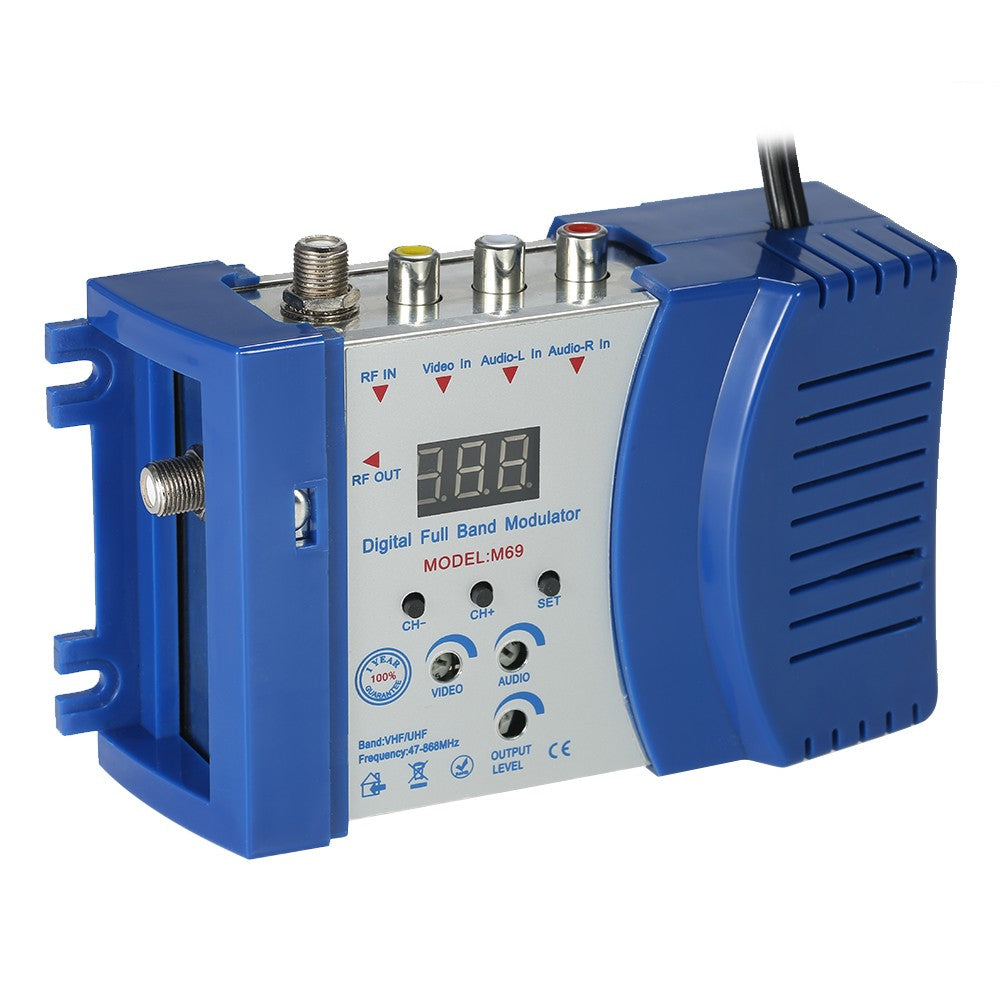

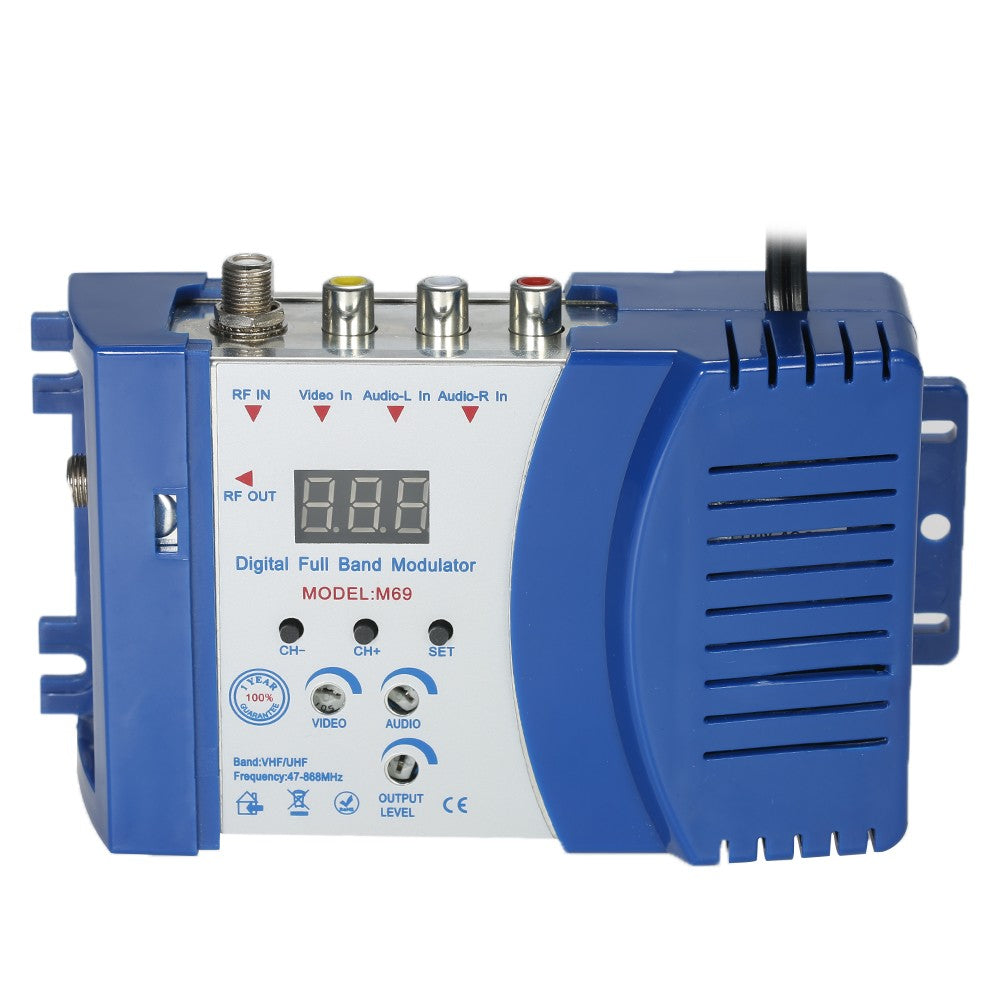

Digital RF Modulator TV Link Modulator AC120V RCA Compact RF Modulator Converter IR Extender VHF UHF Signal Amplifier

This RF Modulator is designed to generate RF and TV signals from A/V sources, which you could view the program on your TV directly via channel. It's widely used in schools, retail displays, trade show presentations and more.

• Humanized design, easy to install and operate

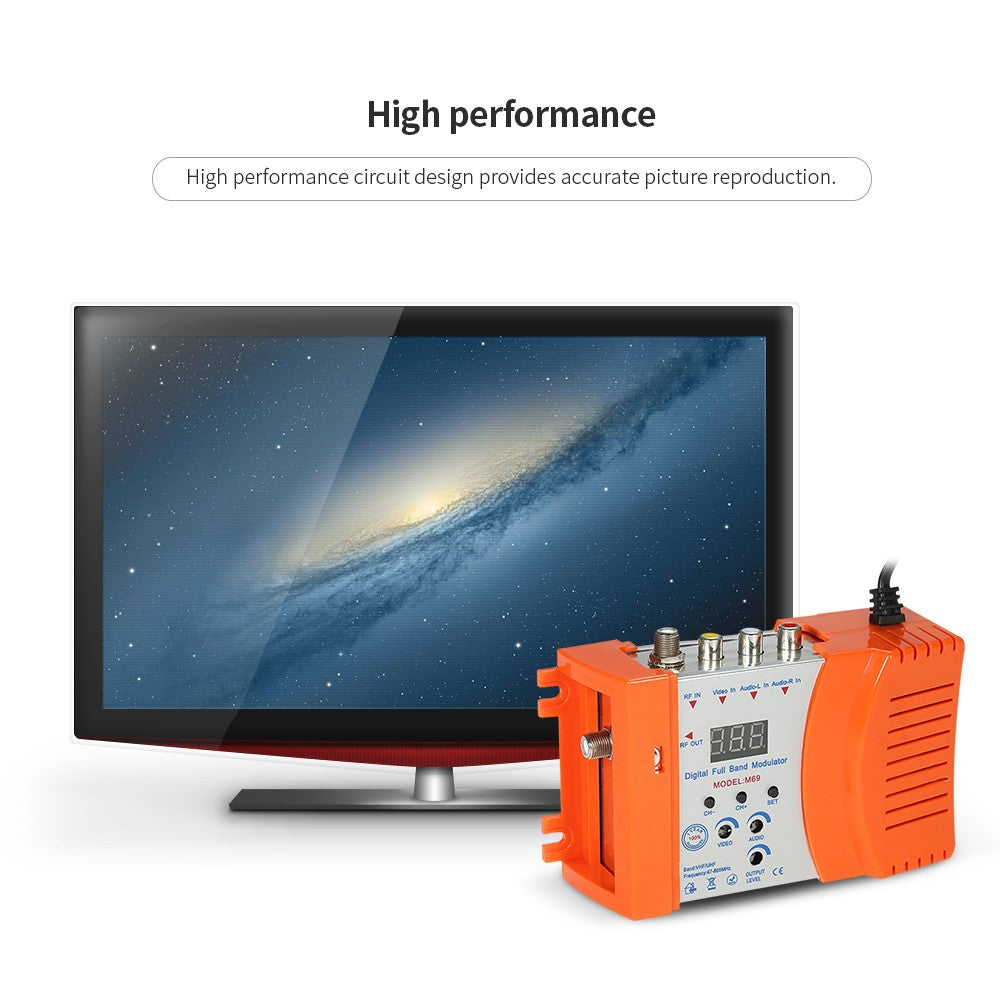

• High performance circuit design provides accurate picture reproduction
• Can convert audio and video to RF via channel
• VHF / UHF operating frequency from 47 to 868 MHz
• With selectable output levels of audio and video
• Compatible with all local CATV systems

Specifications:

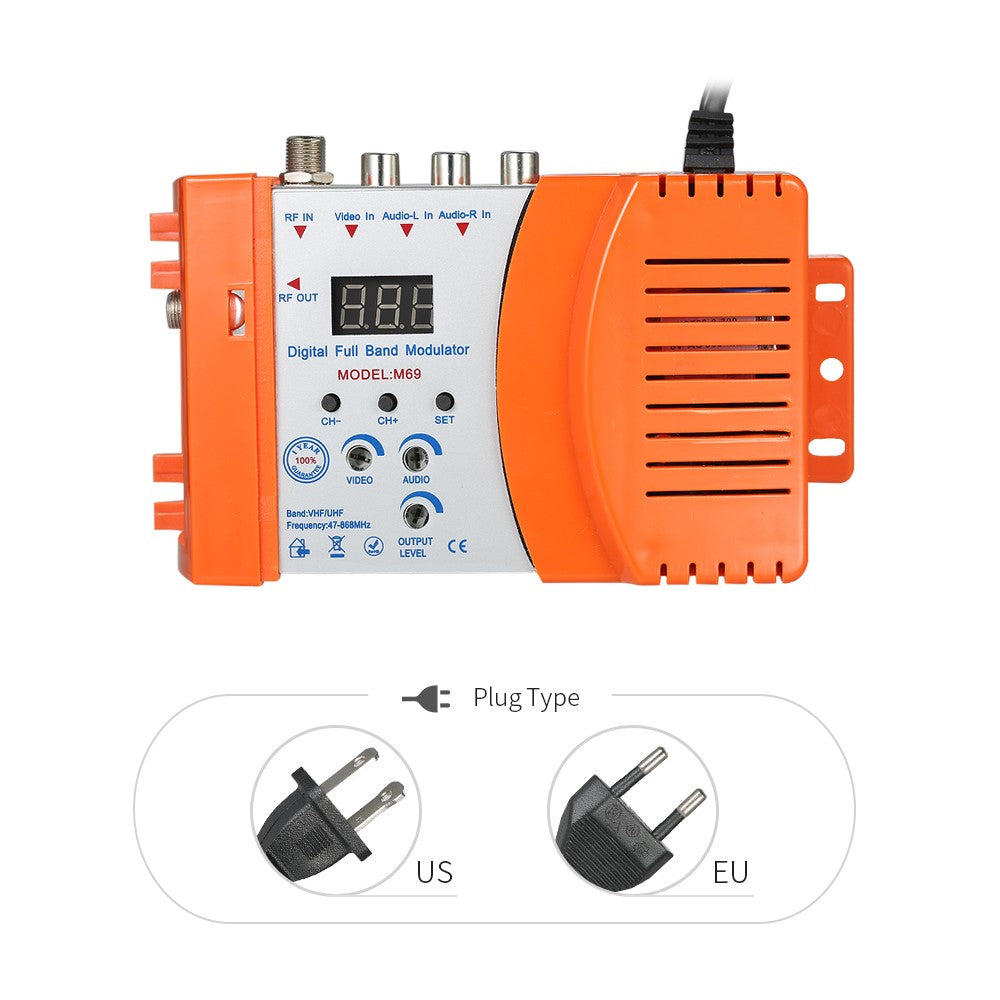

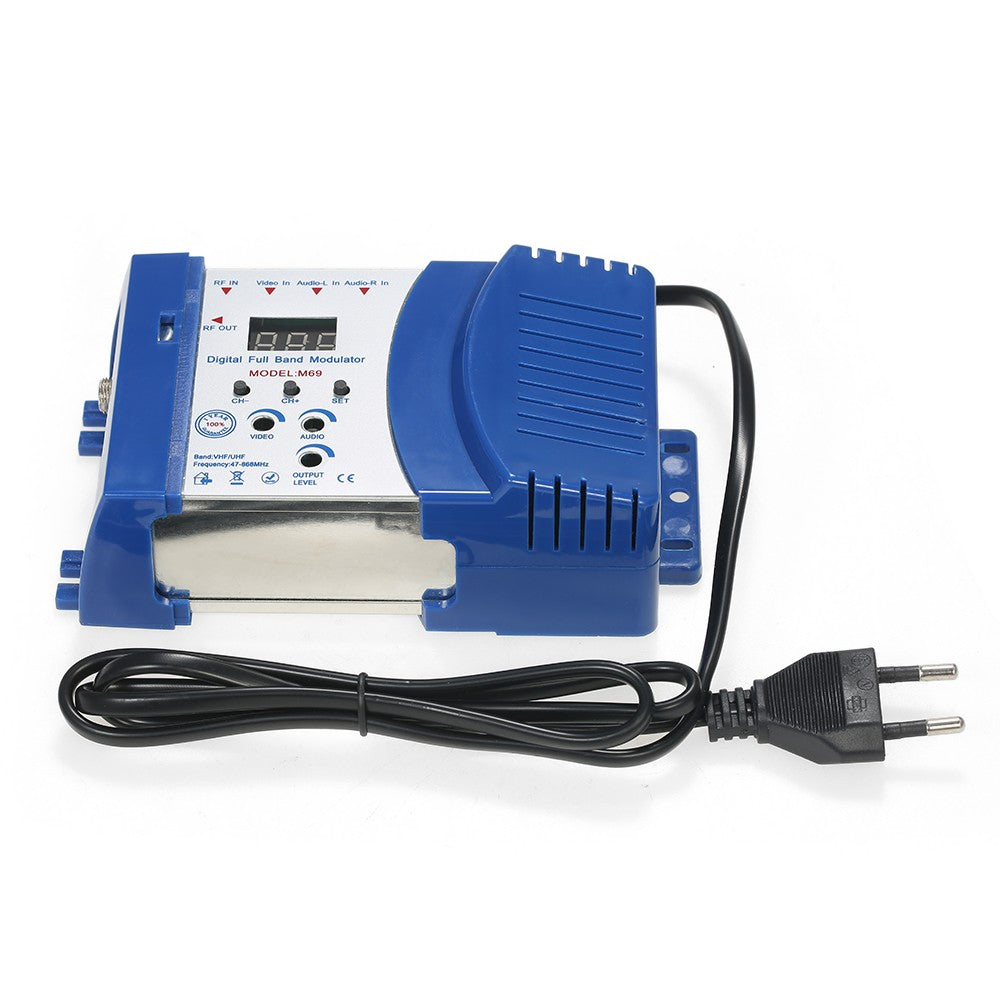

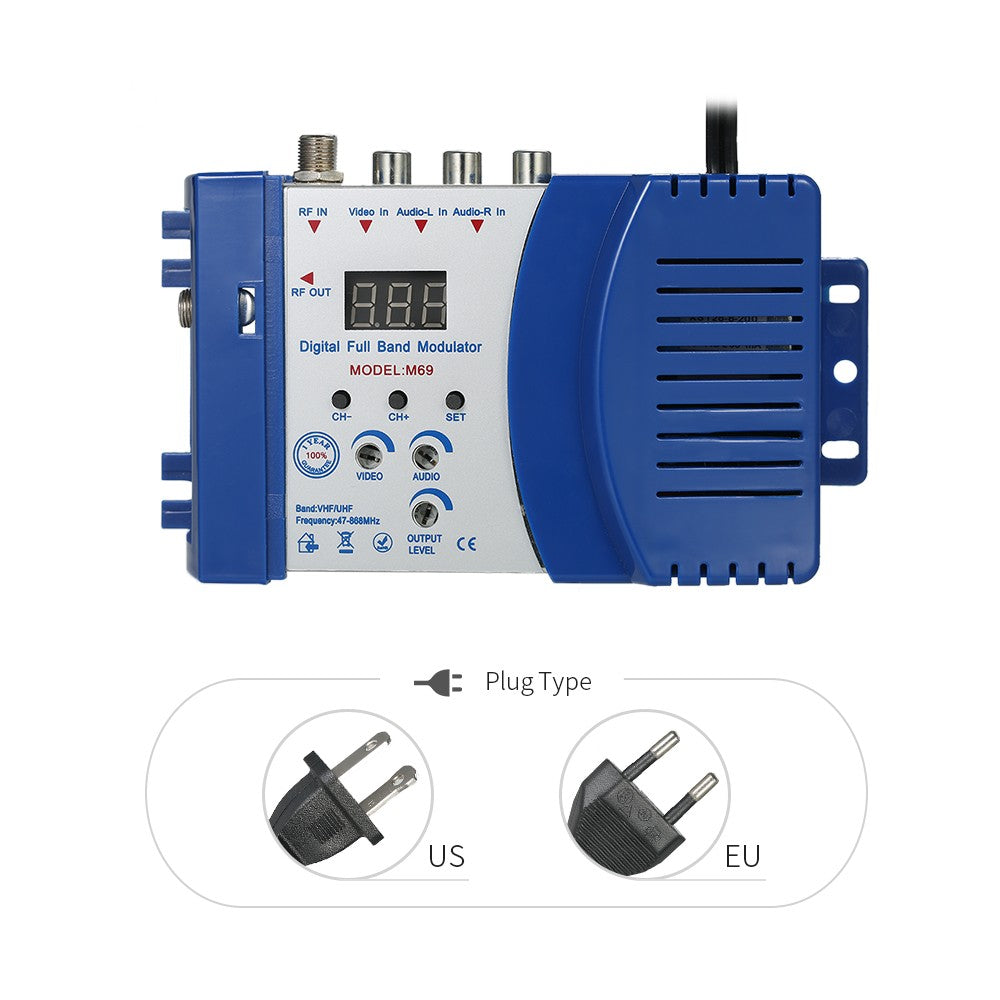

• Plug Type: EU
• Material: ABS
• Input: AC120V, 60Hz
• Max. Power: 3W
• Frequency Range: 47-868MHz
• Output Impedance: 750Hm
• Output Level: 80-95dBuV
• Input Level: 0.77Vp-p for 80%+/-10% modulation
• Sound System: M=4.5MHz; B/G=5.5MHz; I=6.0MHz; D/K=6.5MHz

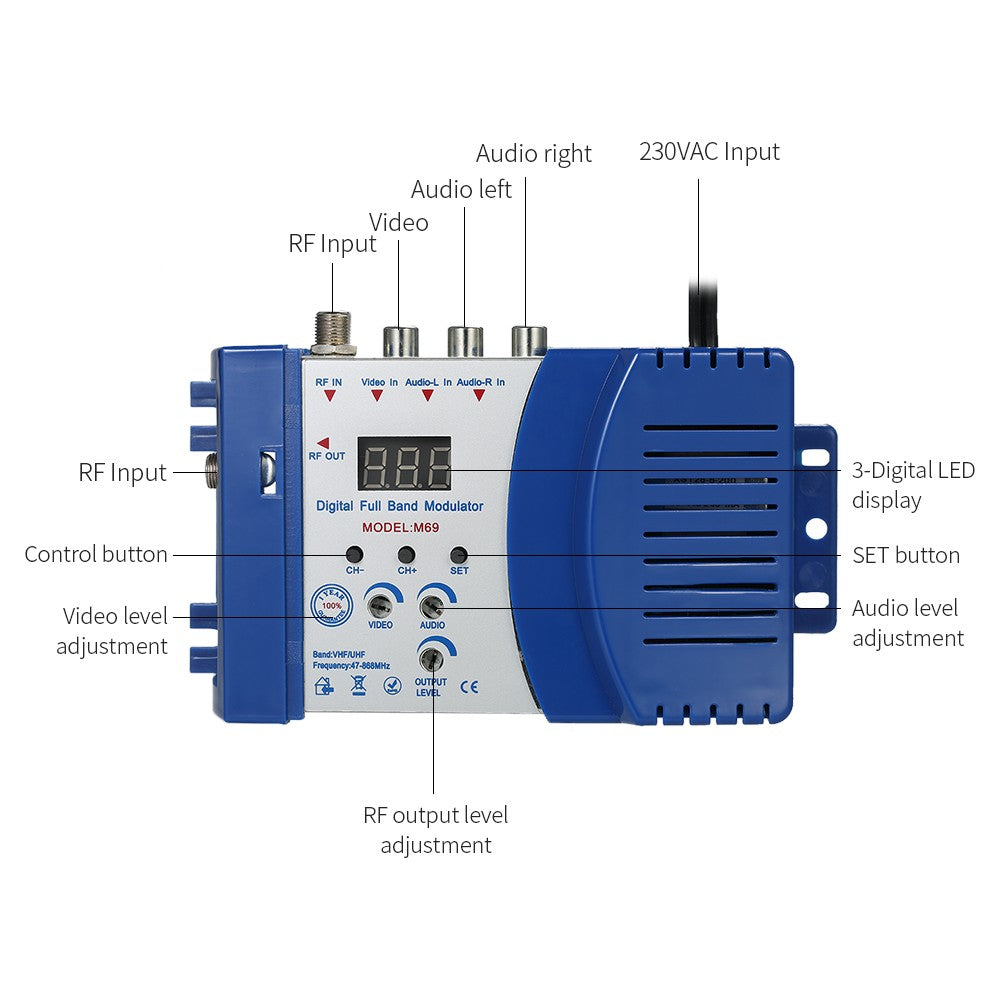

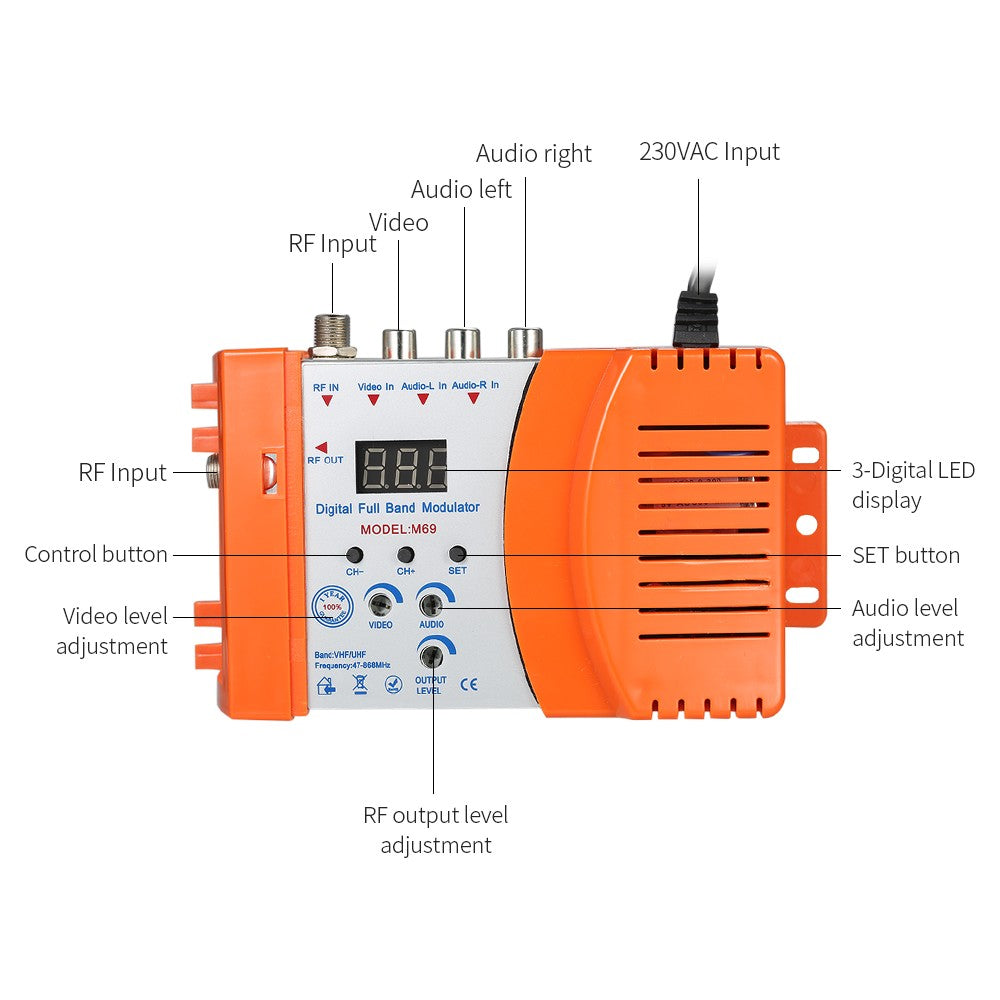

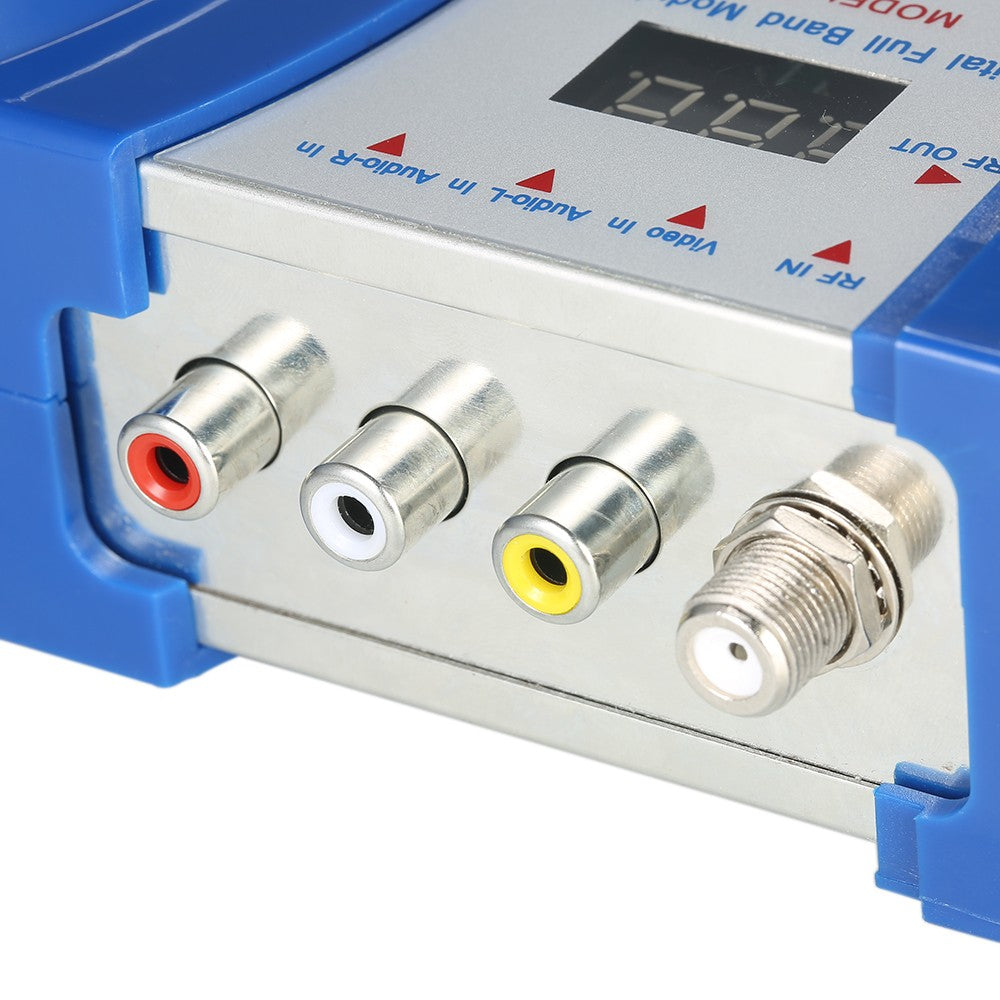

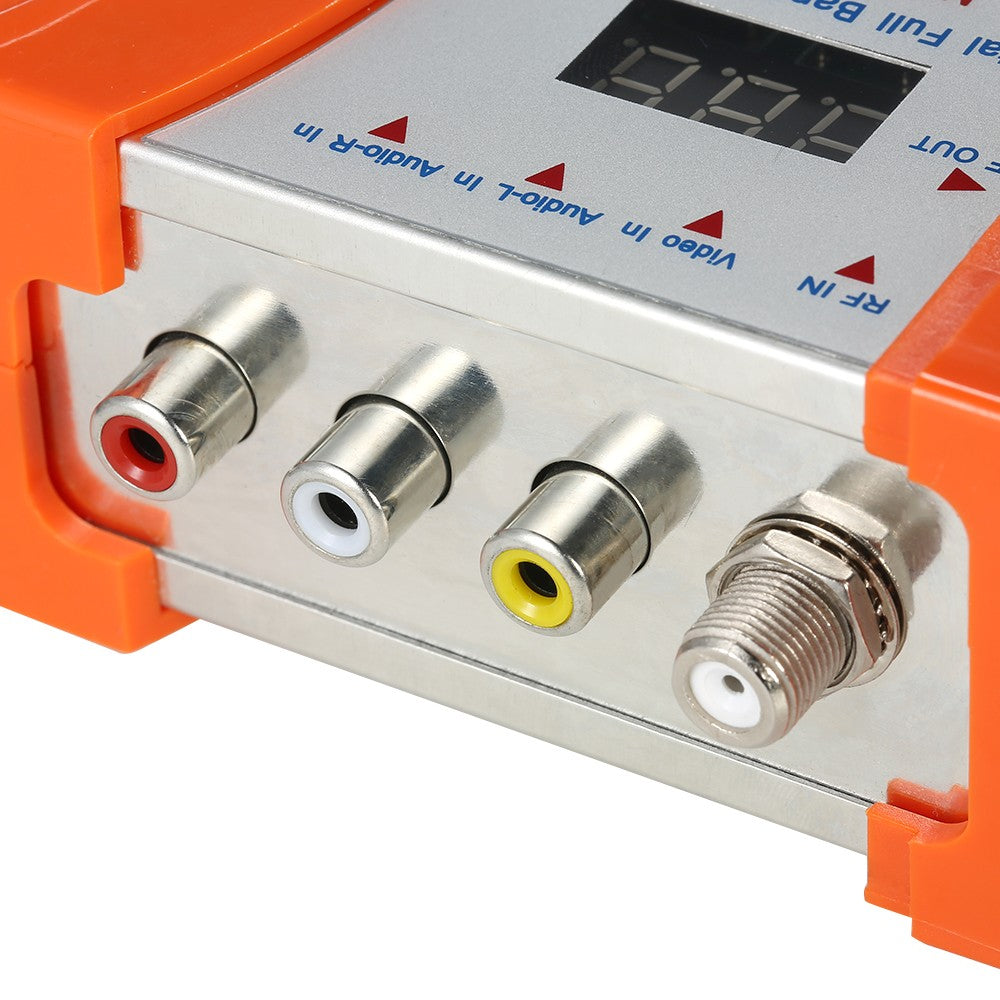

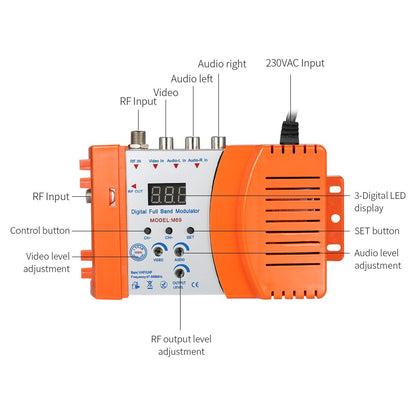

• A/V Connector: RCA Female
• RF Input: F Female
• RF Output: F Female
• Operating Temperature: -10℃ - +60℃ / 14℉-140℉

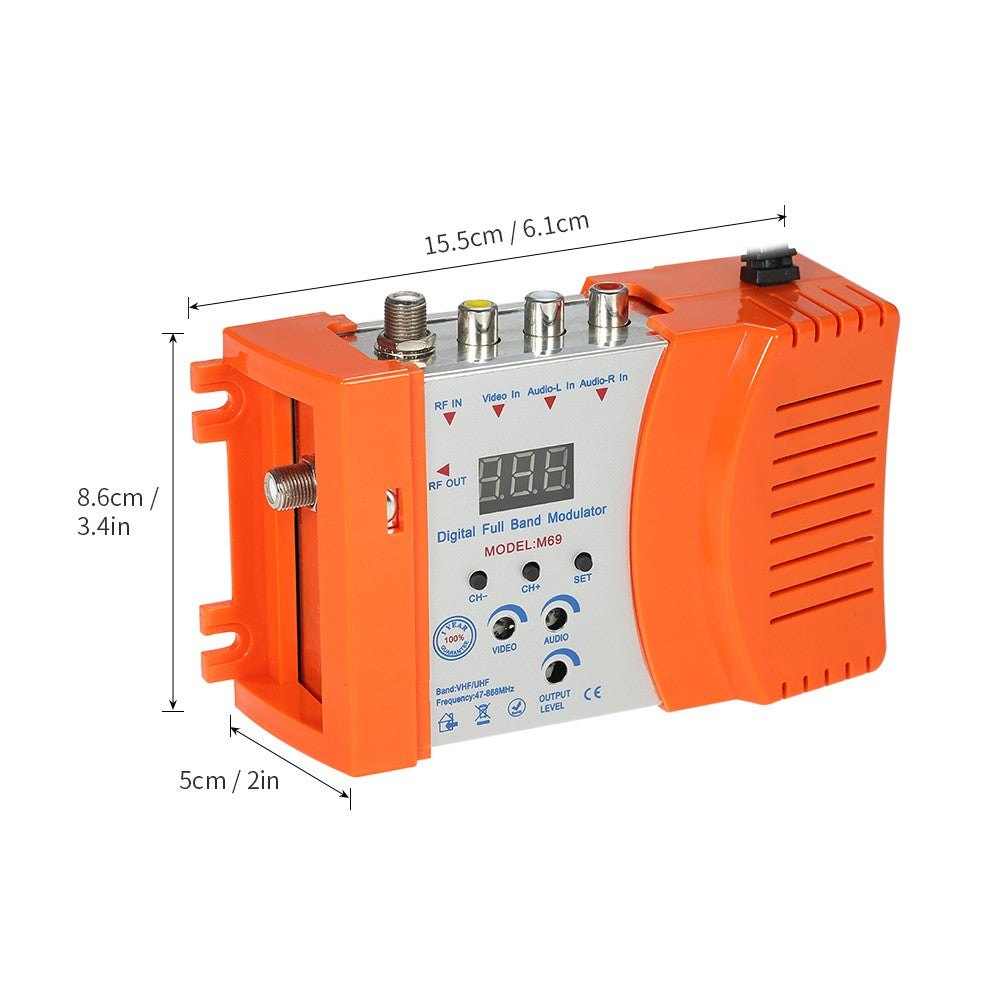

• Item Size: Approx. 15.5 * 8.6 * 5cm / 6.1 * 3.4 * 2in
• Item Weight: Approx. 375g / 13.2oz

Package included:

• 1 x Modulator

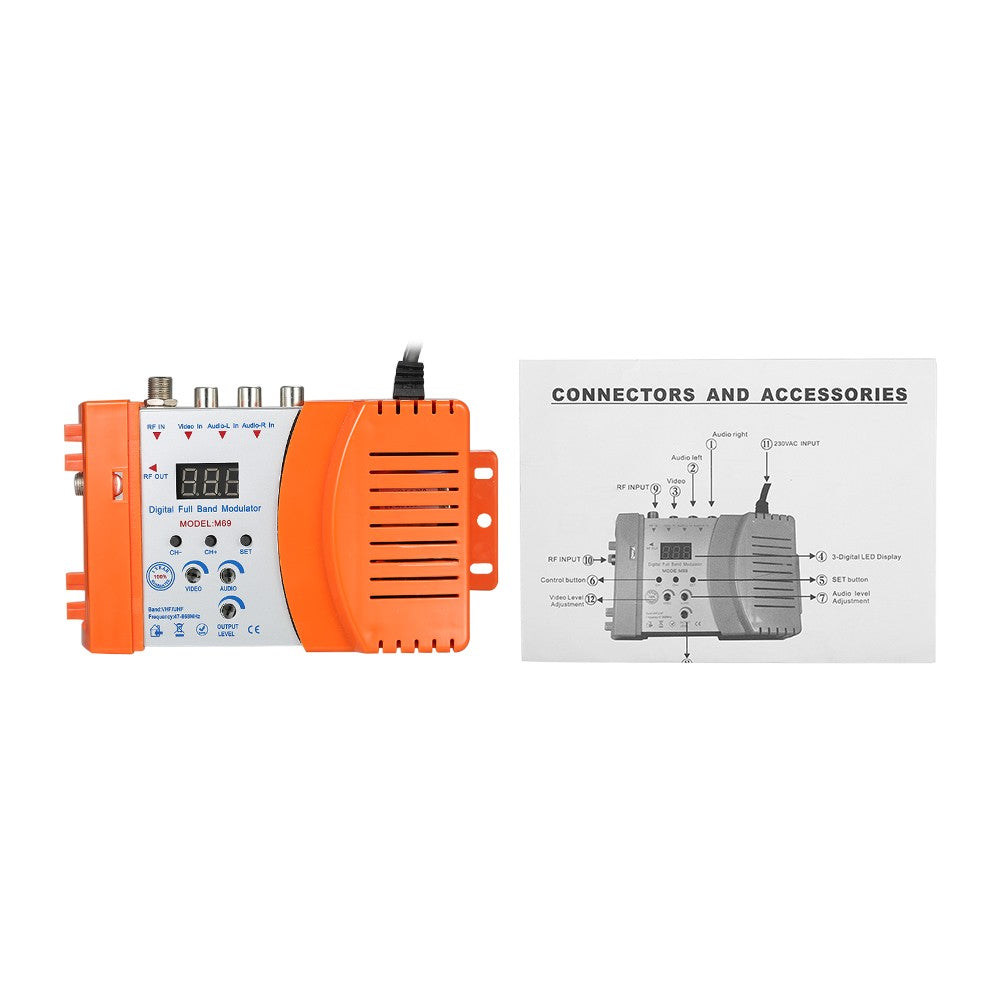

• 1 x English User Manual
