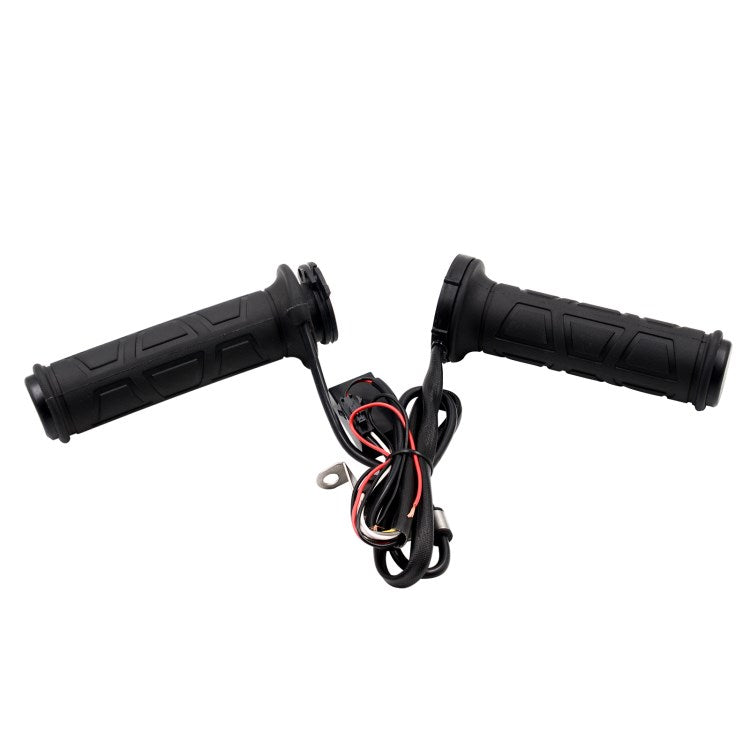

WUPP CS-095D1 Winter Motorcycle Heating Grip Electric Hot Hand Warm Bike Handlebar Cover

• 12V voltage, 22mm handlebar inner diameter, suitable for most motorcycles

• High/low temperature, the handle temperature can be adjusted at will (50℃-70℃ adjustable)

• Double throttle cable buckle, wider installation range

• Portable design, does not affect the installation handle

Specifications:

• Product: Electric heating handle

• Model: CS-095D1

• Weight: 236g

• Handle diameter: 22mm

• Input voltage: 12V

• Power: 12W-24W adjustable

• Left handle: 143*36mm; right handle: 127*36mm

• Handle temperature: 50℃-70℃, adjustable

• Applicable models: 12V motorcycles with a handlebar diameter of 22mm

Install:

• 1. Remove the original handlebar

• 2. Wet the inner hole with soapy water with the left hand, and the twisting range should not be too large during installation

• 3. When installing the balance iron on the left hand handle, adjust the position of the balance iron to be slightly separated from the handle, and do not squeeze the handle when tightening the screw

• 4. In use, the left hand handle slides on the steel pipe and removes the balance iron

• 5. Red wire - positive, black wire - negative

• 6. When the left-hand handle is installed, the power cord should leave enough extra wire for rotation

Note:

• 1. When installing the left handle, do not twist the handle too much. Excessive twisting will cause the heating wire to shift.

• 2. For models with balance iron, please adjust the installation position of the balance iron, do not squeeze the handle when tightening the screws, and the balance iron and the handle are slightly separated.

Package included:

• 1 x Heating Grip Set
