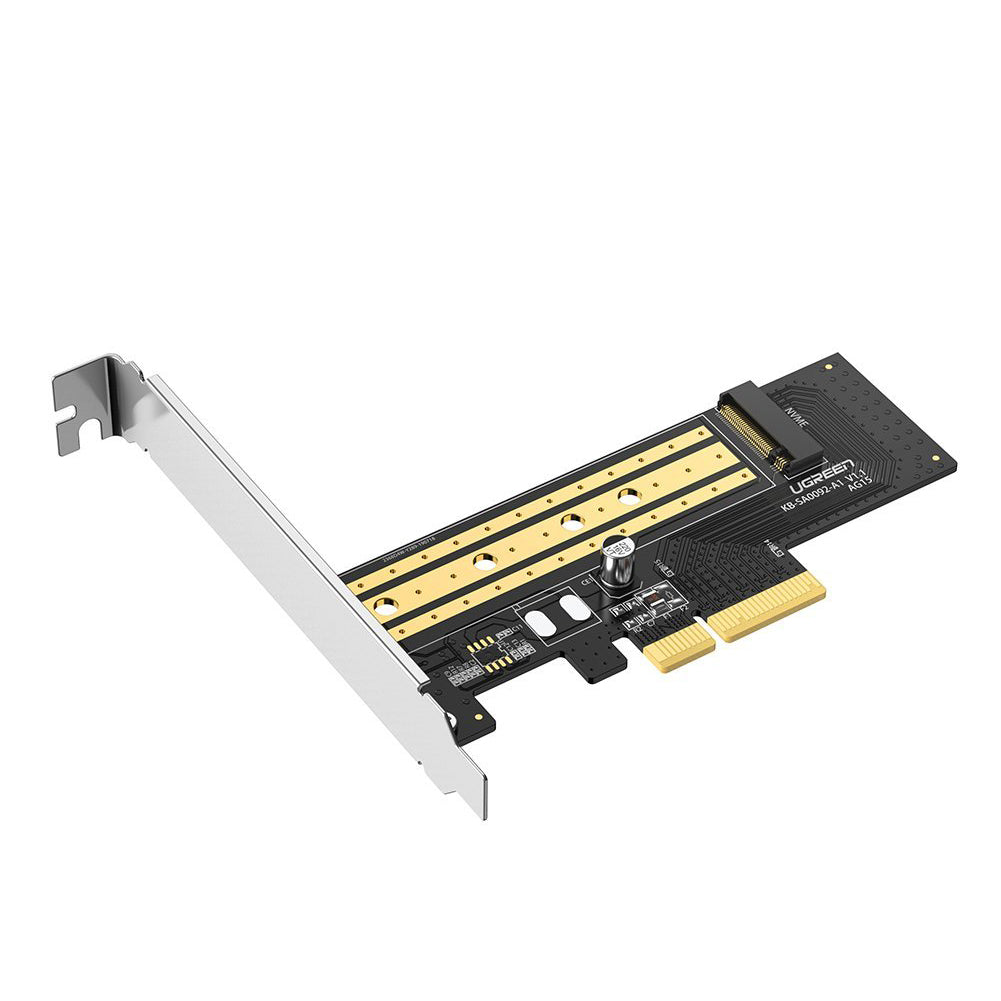

UGREEN M.2 NVME to PCle 3.0 Adapter High Speed Computer Expansion Cards SSD Conversion Card with Bracket

• Multi-layer PCBA, Multi-layer protection: Over-current protection,Over-voltage protection, Short circuit protection, EMI (Electromagnetic Interference) protection. Maximum protection of M.2 NVMe SSD (Your valuable data) from electrical signal interference

• Easy Setup: No driver installation required (if an exclamation mark appears after installing the adapter, ask the SSD manufacturer to offer the NVME driver for SSD for PCIe). Includes both flat and full profile brackets for installing flexible system chassis, ideal for 2U enclosures

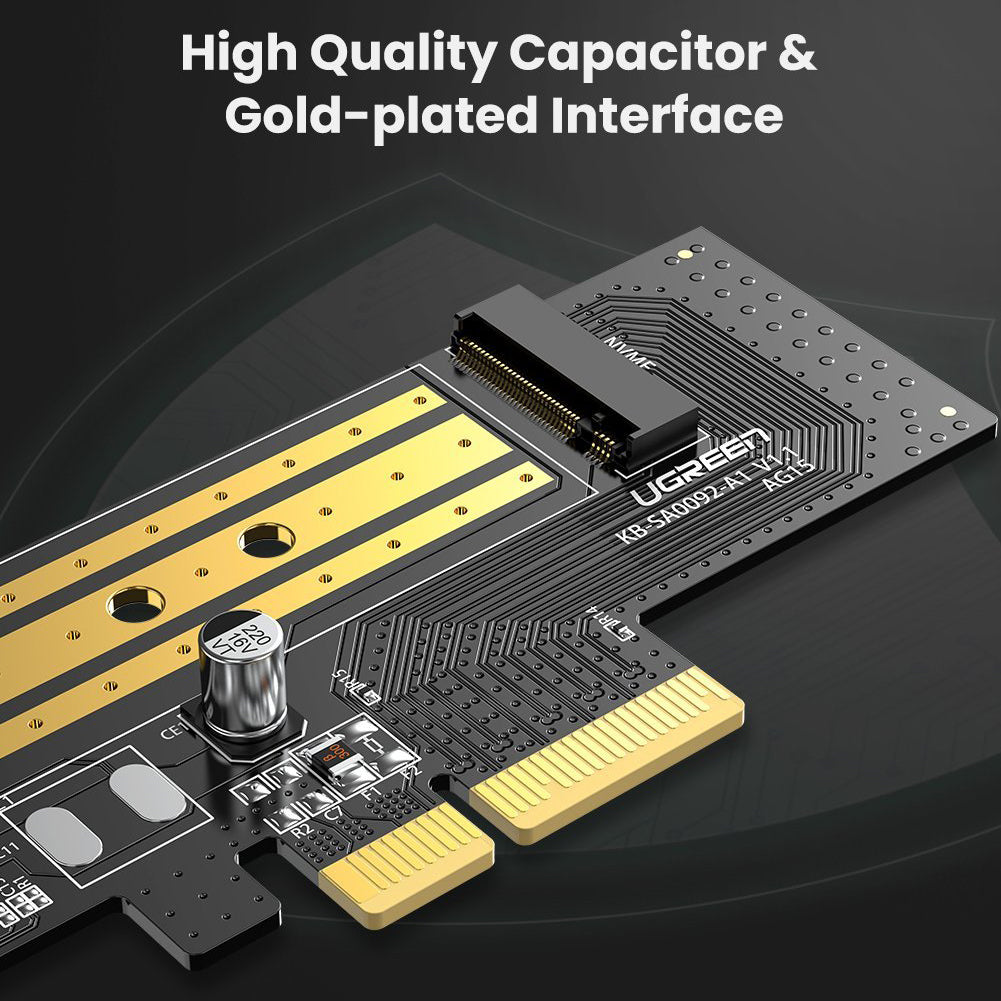

• Safe and stable transmission: It built with high quality capacitor and gold-plated interface to ensure information security and stable transmission

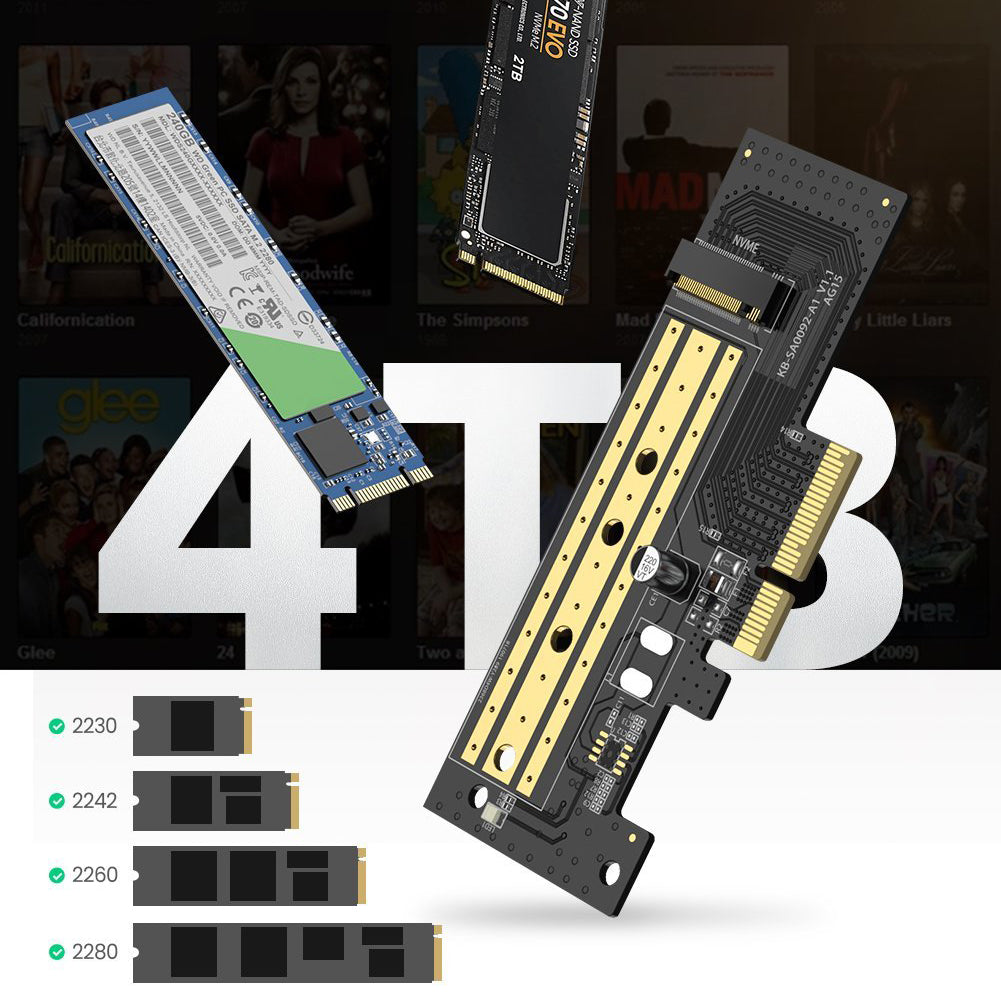

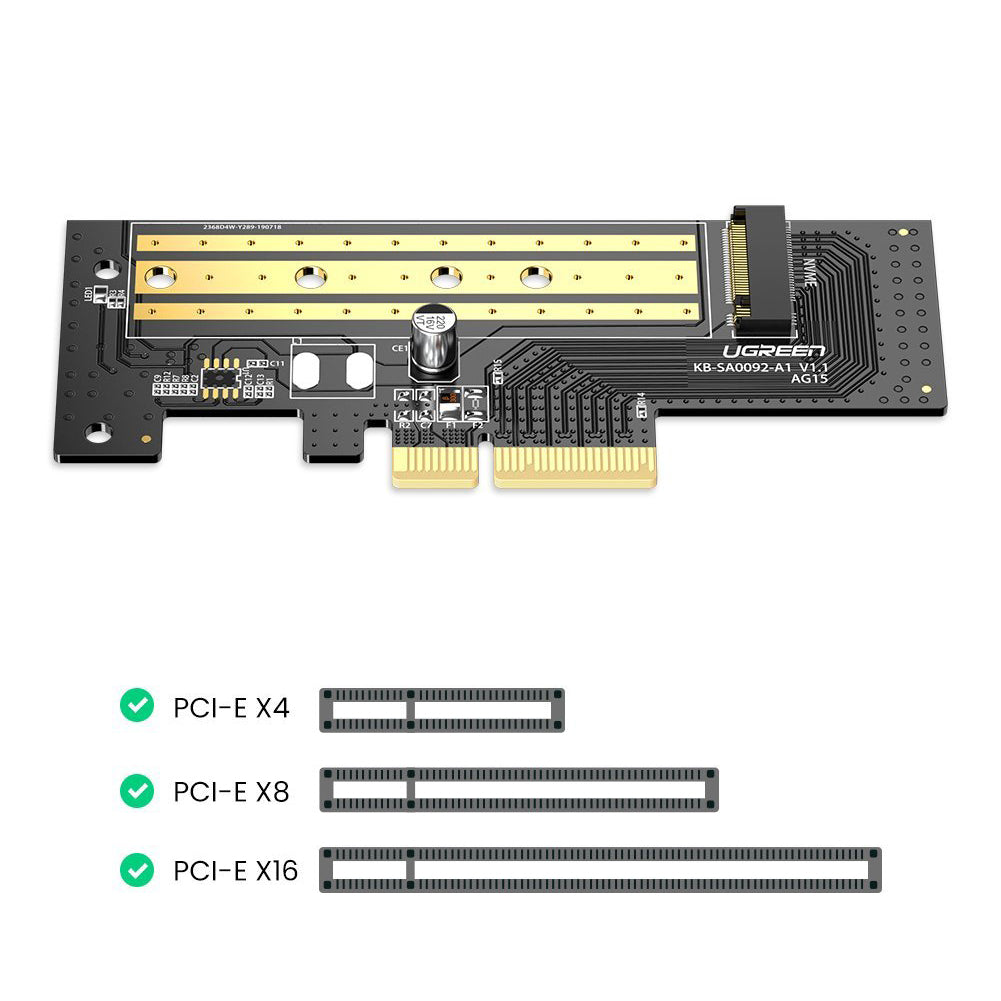

• Compatible Devices: Compatible with PCI-e 3.0 motherboards, and is backwards compatible with PCIe 2.0 and PCIe 1.0. Adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe AHCI M.2 SSD including 2230, 2242, 2260, and 2280 drives

• For Samsung 950PRO/960EVO/PM951/PM961/SM951/SM961/970EVO/970PRO

• For Intel Optane SSD 800P Series, for Intel SSD 760p Series, for Intel SSD 660p Series, for Intel SSD 600p Series

• For Toshiba OCZ RD400/Plextor M8PEG M6E/Kingston KC1000, etc.

Specification:

• Data Transmission: 32Gbps (NVME), 6Gbps (NGFF)

• Supported Systems: for Windows, for Mac, Linux

Note:

It is designed to work only with "M" key M.2 PCIe SSD. Not compatible with "B" key M.2 PCIe x2 SSD or "B" key M.2 SATA SSD

Package included:

• 1 x M.2 to PCI Express Adapter Card

• 1 x Aluminum Heat-sink

• 1 x Heat Conducting Silicone Pad

• 1 x Screwdriver

• 1 x Screw Kit

• 1 x English and Chinese User Manual
