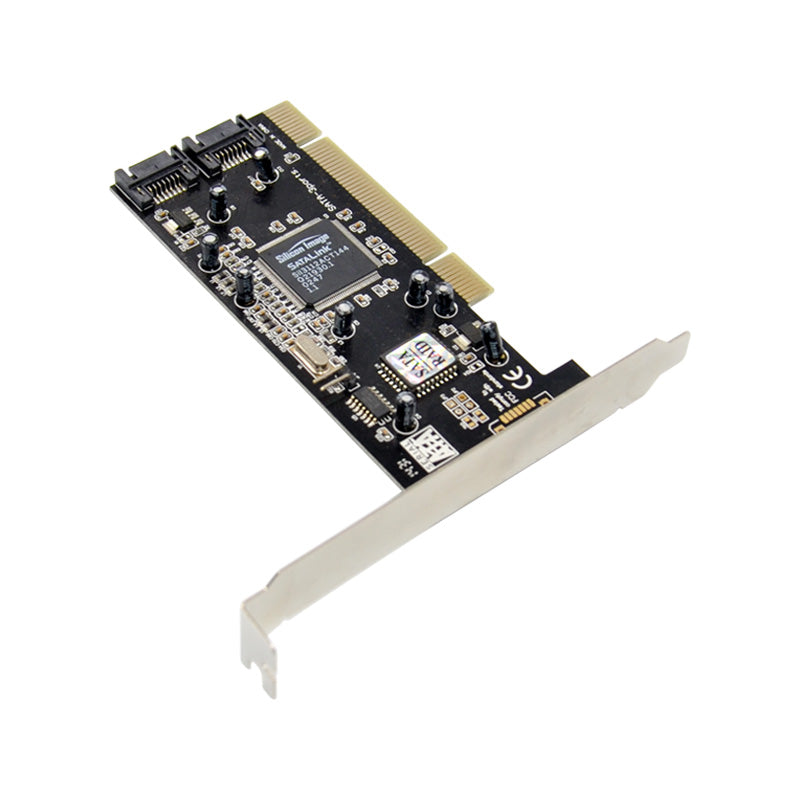

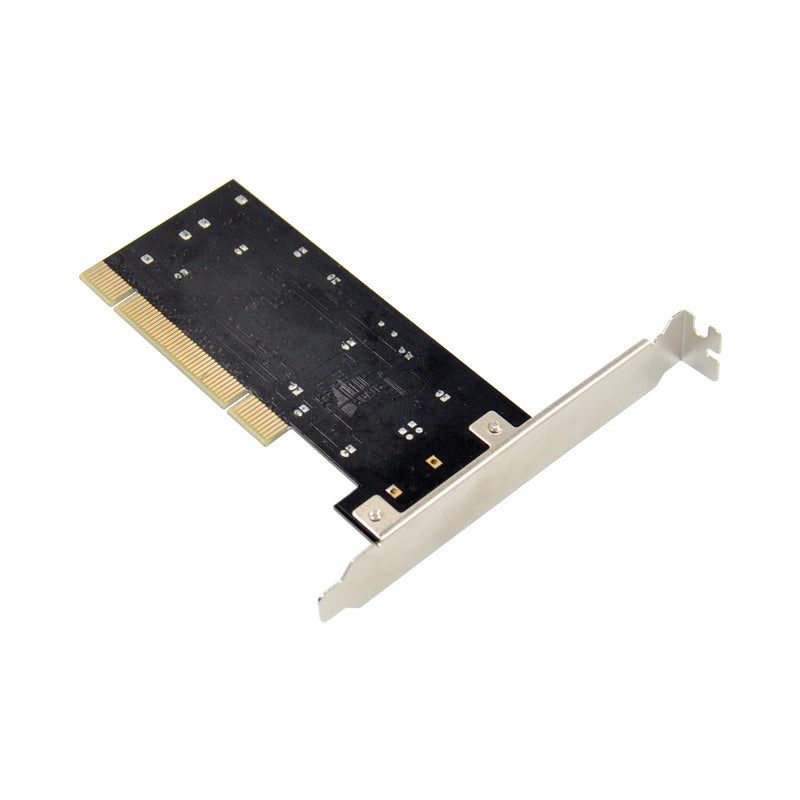

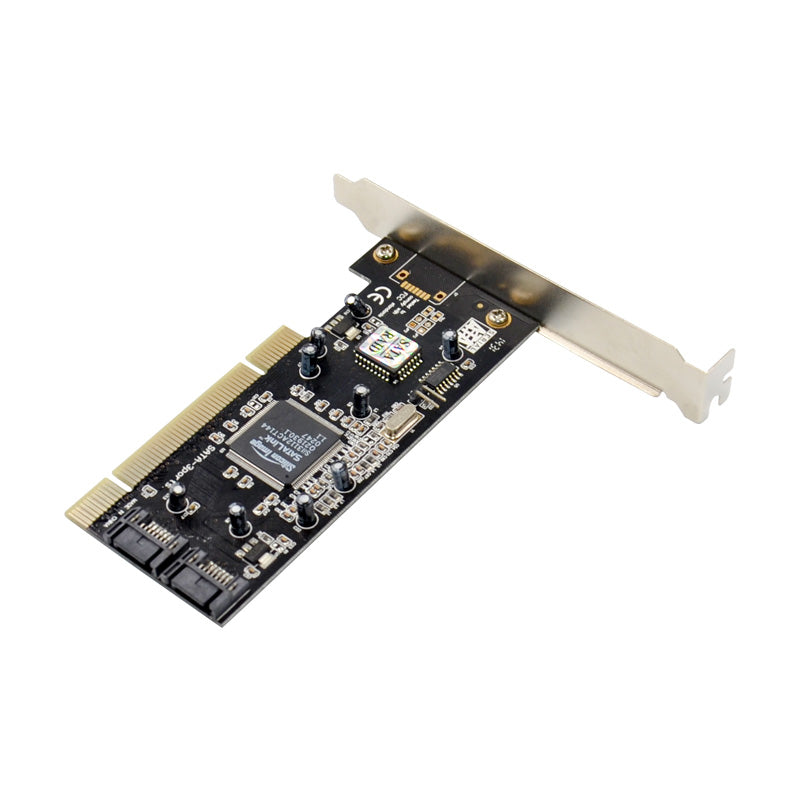

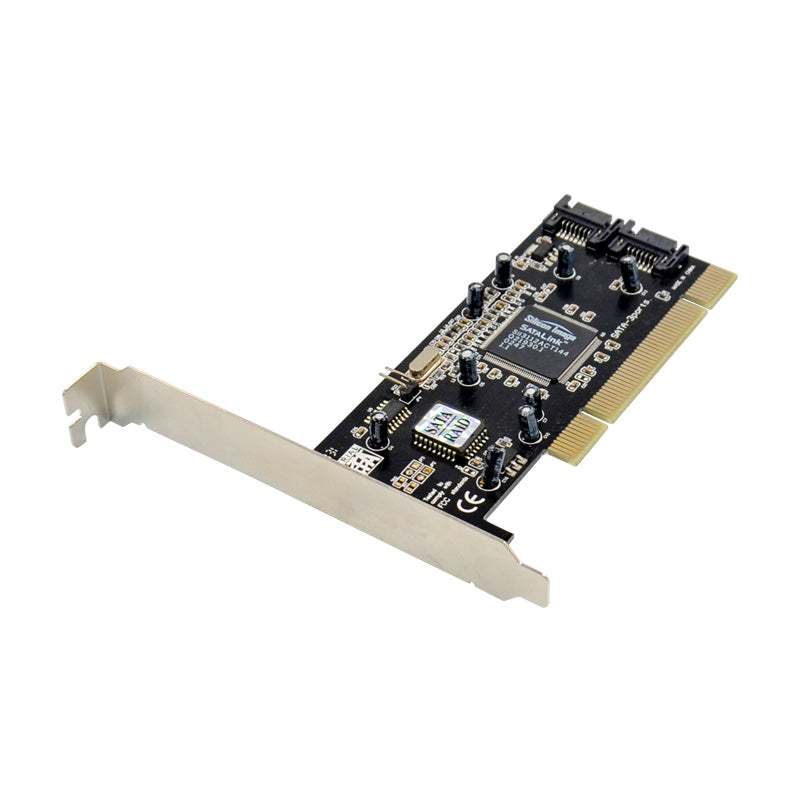

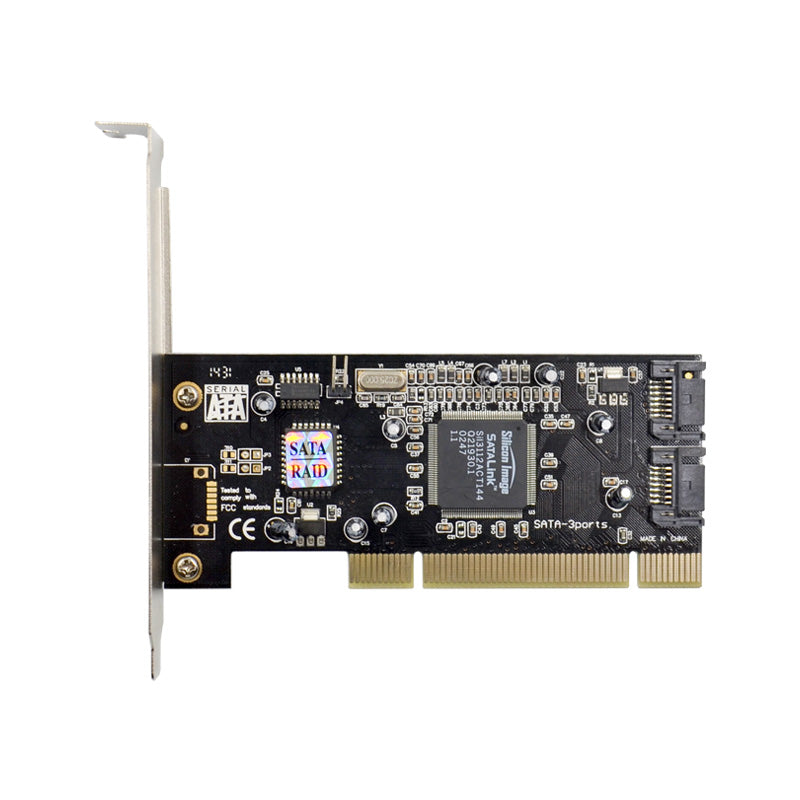

PCI Sil3112 SATA150 2 Channel RAID Array Card Built-in SATA Hard Disk Expansion Conversion Card with SATA Cable

The PCI Sil3112 SATA Serial ATA host controller card is designed to provide a high performance, low cost and reliable solution for users who need to provide storage peripherals through the new Serial ATA interface. It can control two independent Serial ATA channels, each with its own serial. ATA bus and supports one Serial ATA device.

• Silicon Image SIL3112A, Serial ATA (SATA) Host Controller Chipset
• Compliant with Serial ATA Specification Revision 1.0
• Supports Serial ATA generation transfer rate of 1.5Gb/s (150MB/s)
• Compliant with PCI IDE Controller Specification Revision 1.0
• Compliant with PCI Specification Revision 2.2
• Programming interface compliant with Bus Masster IDE Controller Revision 1.0
• Supports two independent Serial ATA channels
• Independent 256-byte FIFO for each Serial ATA channel for host read and write
• Operating system:
• Windows 98SE/ME/NT4.0/2000/XP/for Vista/Win 7 32/64 bit
• Pentium-class computer with one available PCI slot

Specification:

• Product size: L121 x W51 mm (without PCI bracket)
• Product weight: 43.4g

Package included:

• 1 x PCI Sil3112 SATA150 RAID Card

• 1 x CD Driver

• 1 x SATA Data Cable

• 1 x Short Iron

• 1 x English User Manual
