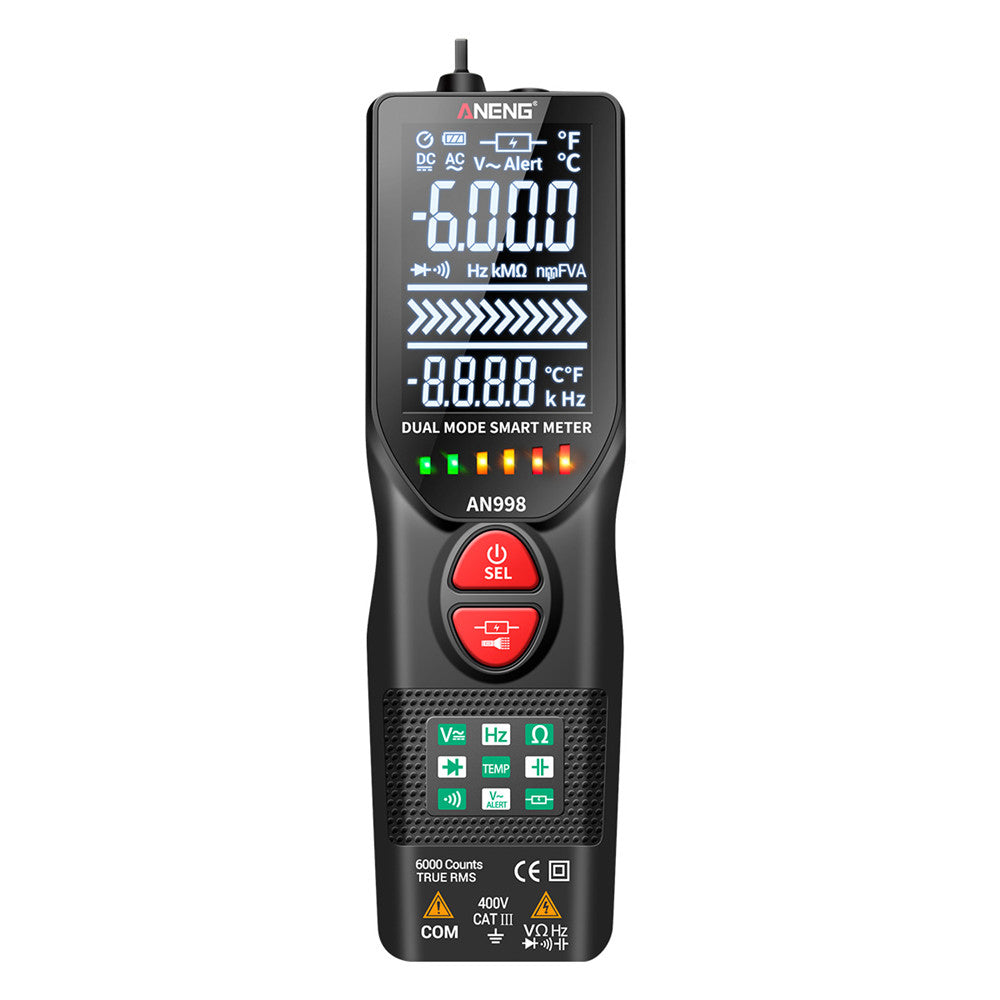

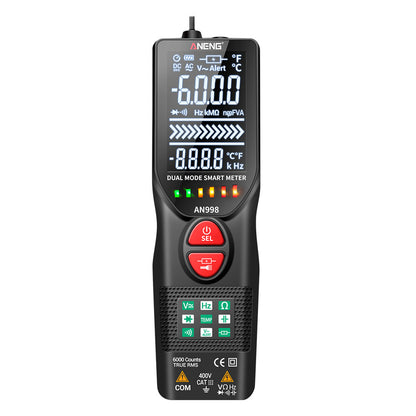

The meter is a professional, portable measuring instrument with LCD digital display and backlight. Users can read the data easily. One-handed operation of the range switch makes measurement easy, with overload protection and Low Battery indication. Whether for professionals, factories, schools, hobbyists and families, it is an ideal multi-function instrument.

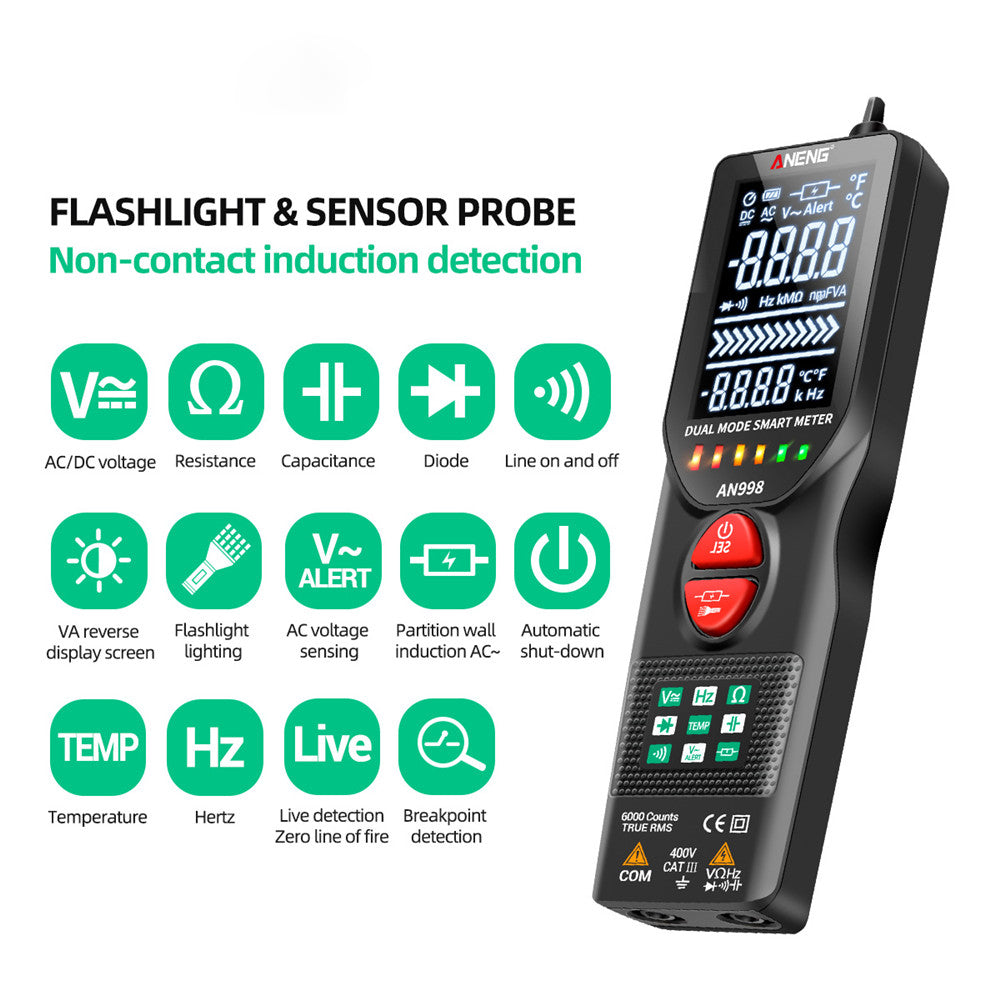

The meter is for AC DC voltage, true RMS sine wave, duty cycle, resistance, capacitance, frequency, measurement and trip line. Diode test, temperature measurement
The meter has Auto Range function
The meter has a reading hold function
Meter with automatic shutdown function
Various electronic components can be measured to meet your multi-functional needs

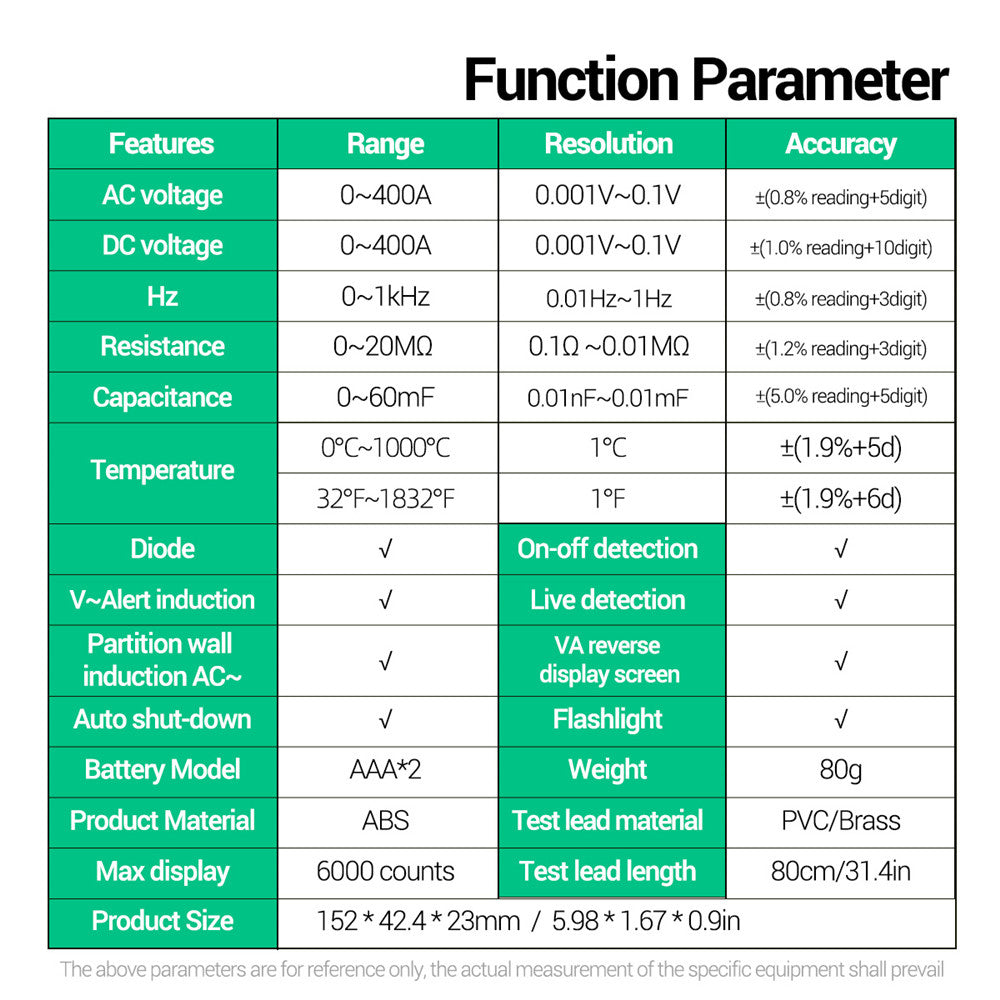

Specifications:
DC voltage:
Range: 6V / 60V; Accuracy: + - (0.5% reading + 5 digits)
Range: 400V; Accuracy: + - (0.8% reading + 5 digits)
From AC voltage:
Range: 6V / 60V; Accuracy: + - (0.8% reading + 3 digits)
Range: 400V; Accuracy: + - (1.0% reading + 10 digits)
Resistance:
Range: 600Ω / 6k Ω / 60k Ω / 600kΩ; Accuracy: + - (0.8% reading + 3 digits)
Range: 6M Ω / 20MΩ; Accuracy: + - (1.2% reading + 3 digits)
Capacity:
Range: 60nF / 600nF / 6uF / 60uF / 600uF / 6mF; Accuracy: + - (3.0% reading + 5 digits)
Range: 60MF; Accuracy: + - (5.0% reading + 5 digits)
Frequency:
Range: 10Hz / 100Hz / 1KHz; Accuracy: + - (0.8% reading + 3 digits)

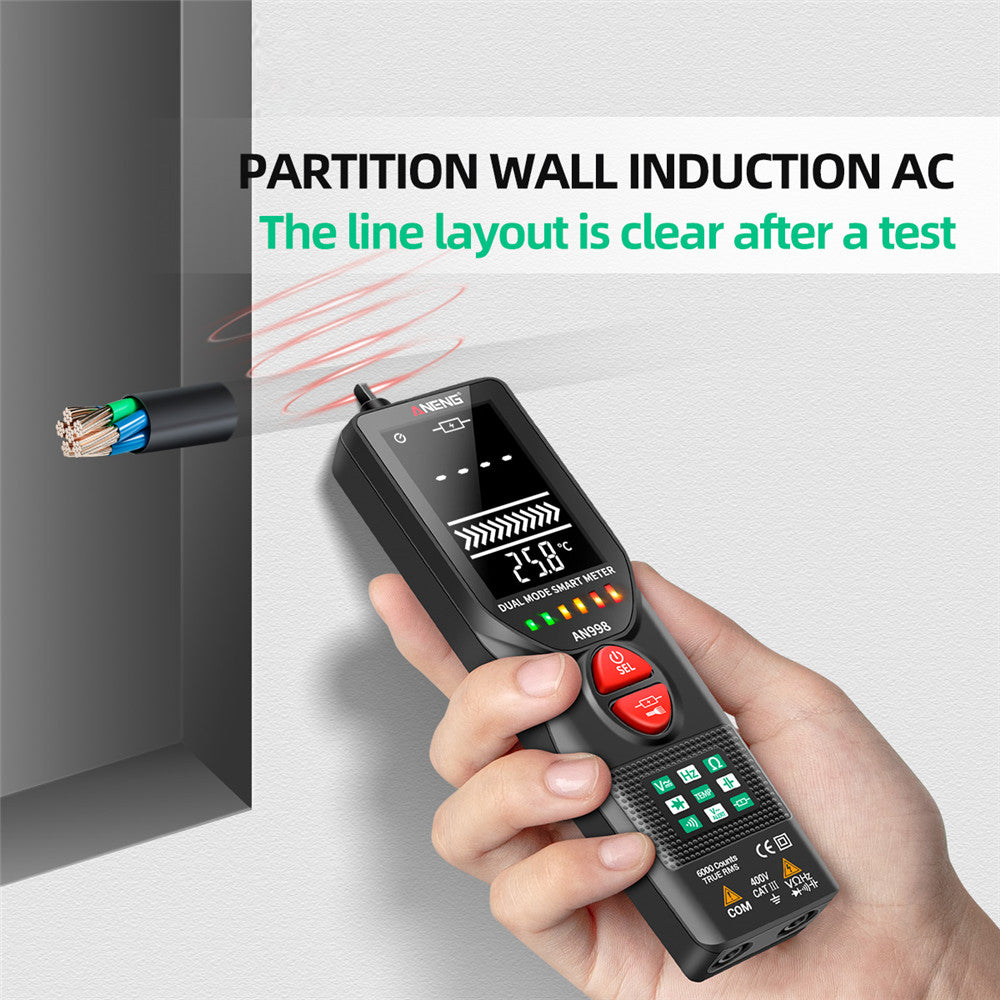

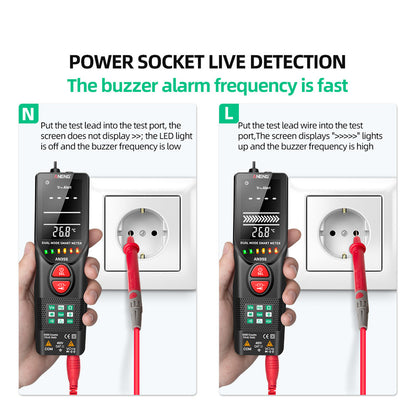

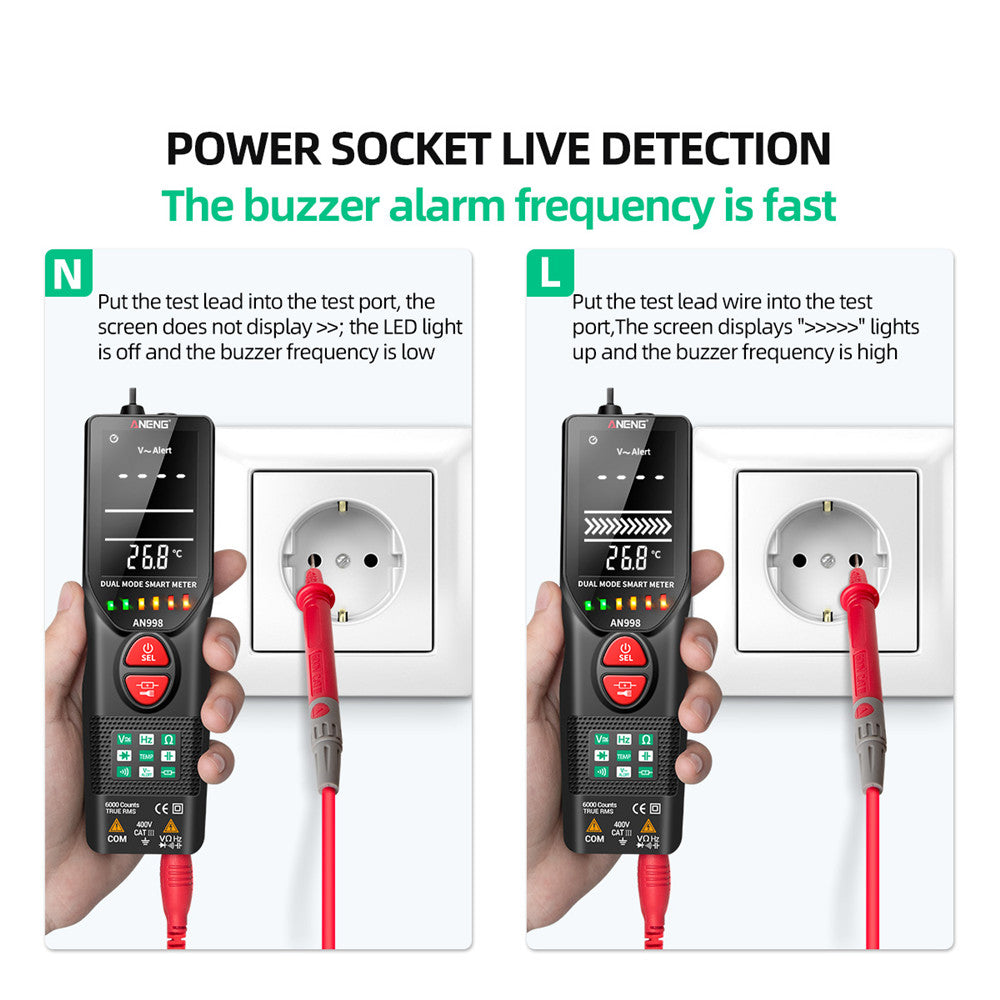

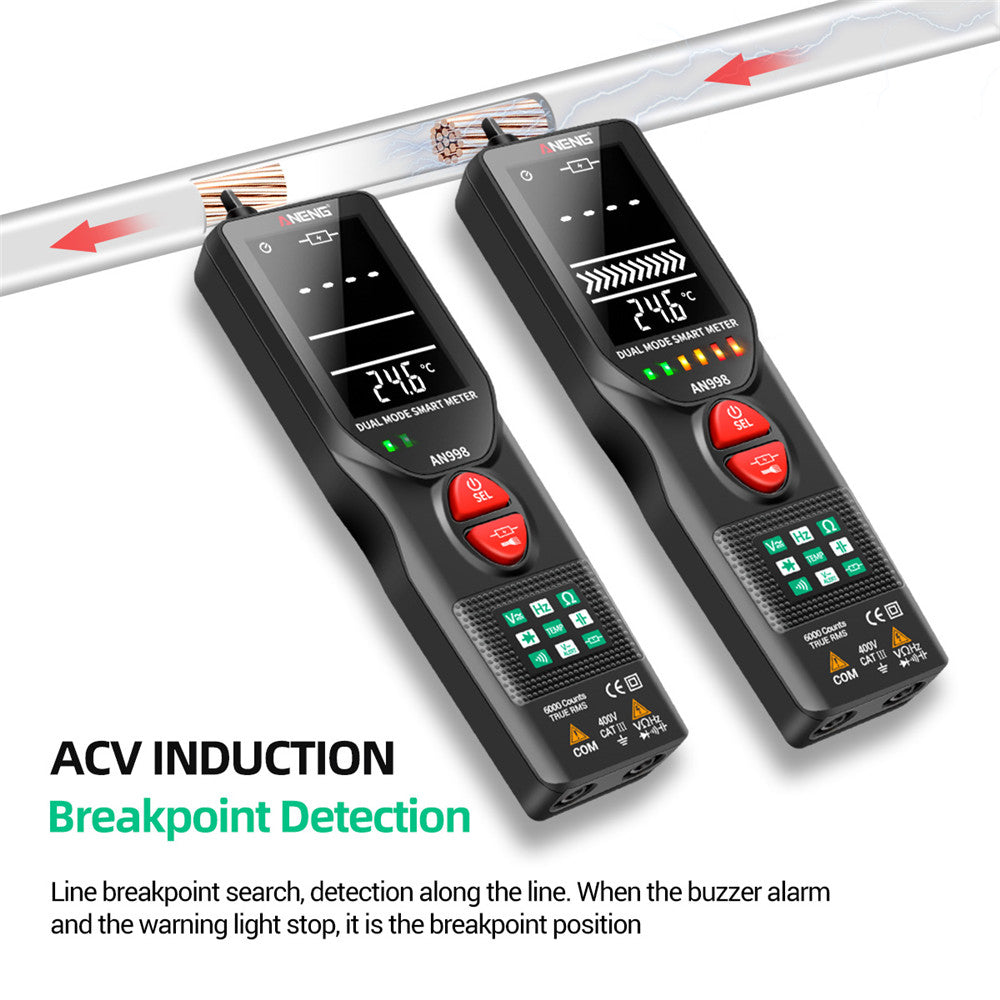

Function: diode test / circuit on-off test / live wall measurement
Temperature:
Range: 0 ℃ -300 ℃; Accuracy: + - (1.0% + 4d)
Range: 301 ℃ -1000 ℃; Accuracy: + - (1.9% + 5d)
Range: 32 ℉ -600 ℉; Accuracy: + - (1.2% + 6d)
Range: 601 ℉ -1832 ℉; Accuracy: + - (1.9% + 6d)
Package included:
