UniqueBud

SKU:661600179A

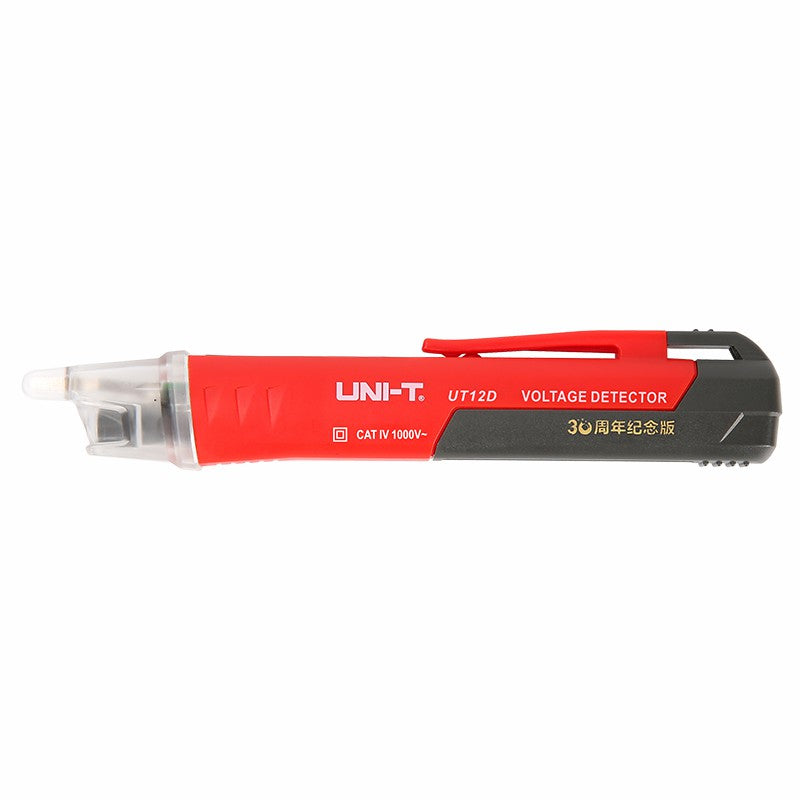

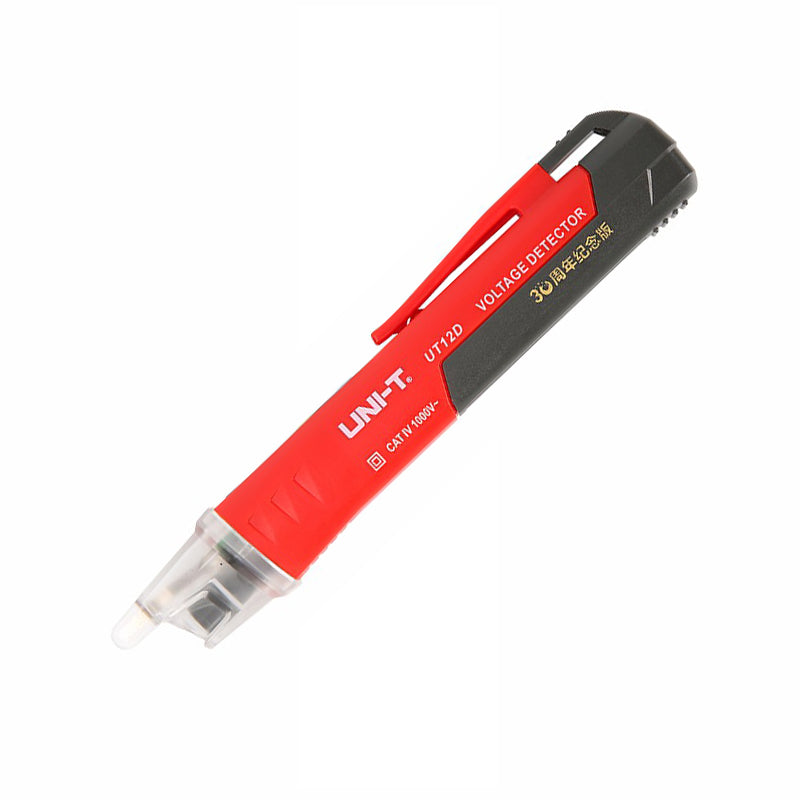

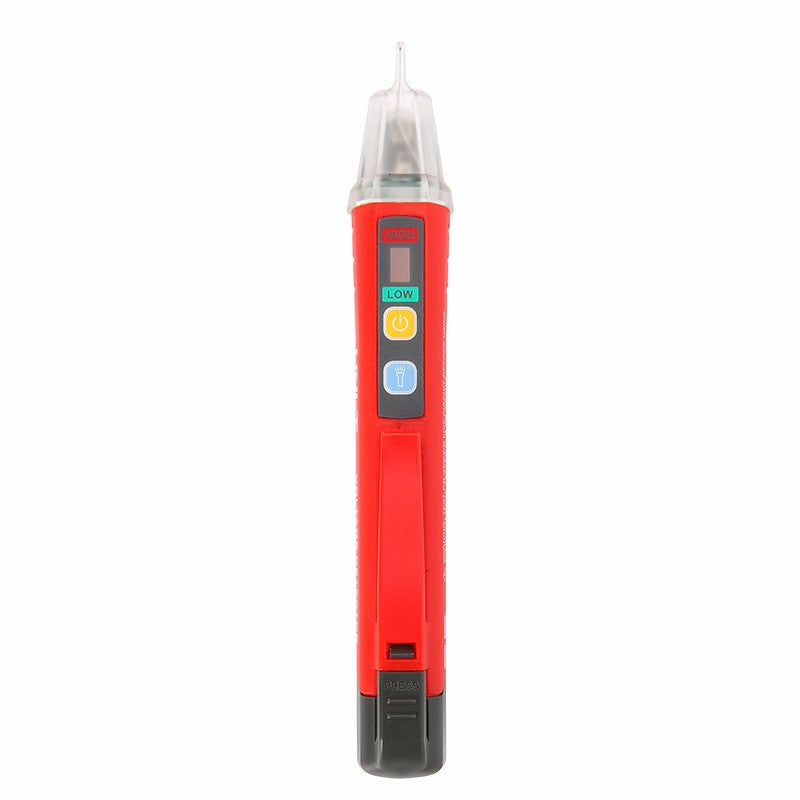

UNI-T UT12D Professional Non-contact Test Pencil AC Voltage 24V to 1000V

UNI-T UT12D Professional Non-contact Test Pencil AC Voltage 24V to 1000V

Regular price Rs. 962.00
Sale price Rs. 962.00 Regular price
Save Rs. -962.00 Sold out
Tax included.

  • Safe and precise, easy to use: Just touch the probe to the terminal block, socket or power cord. When the probe emits red light and the instrument starts beeping, you can know that there is voltage. The AC voltage sensing range is 24V-1000V, which is used to determine whether the conductor is conductive or not. It is compact and easy to insert into the shirt pocket

  • Compact and meticulous (compact): The pen body is made of ABS engineering plastic, and the pen head is made of PC fireproof material. It is wear-resistant and durable, and can achieve good insulation effect

  • Intelligent identification (automatically distinguishes zero-fire line): When the test pen senses the AC voltage, it will quickly and quickly beep and the LED light flashes. (Zero line test: the test head is close to the object to be tested and the slow-paced buzzer sounds. Light alarm; Fire line test: the test pen is close to the object to be tested, fast-paced buzzer sound and light alarm)

  • Dual mode indicator:Low mode (green status indicator): 24-1000V VAC (AC voltage), suitable for: low-voltage AC servo motor power supply detection (generally 24V, 48V, 60V, etc.); such as audio system, security system.

  • High mode (red status indicator): 90-1000V VAC (AC voltage), suitable for better induction 220V mains, 380V three-phase electric and other high-power systems

  • Concentrating flashlight: Refers to the light that is concentrated by using a condenser lens or a mirror, compared to ordinary floodlights. The light is more concentrated, the center spot area is bright and clear, and the lighting effect is good, which is more suitable for the use of the electric pen

  • Lightweight and compact: The test pencil is 150mm long and weighs 50g. It is light and compact. The portable pen holder design is more convenient to carry and detect at any time

Specifications:

  • AC voltage sensing range: low mode: 24~1000V, VAC: high mode: 90~1000V

  • Sensitivity switching: automatic switching

  • Mode status bar: low mode: green; high mode: red; low battery prompt: yellow

  • Security level: CAT IV 1000V

  • Detection mode: HIGHT/LOW dual mode

  • Frequency response: 50Hz/60Hz

  • Alarm mode: sound and light alarm

  • Lighting: white spotlight flashlight

  • Zero FireWire judgment: Yes

  • Automatic shutdown: Yes

  • Low voltage prompt: Yes

  • Product Size: 150mm*18mm*23mm

  • Weight: 50g

  • Power: 2*1.5V AAA batteries (batteries not included)

Package included:

  • 1 x UNI-T UT12D Professional Non-contact Test Pencil AC Voltage 24V to 1000V
