SF-032 PCI-E 3.0 Express 4.0 X4 to Oculink SFF-8612 SFF-8611 Host Adapter for PCI-E SSD with Long+Short Bracket

• This PCI Express card expands the PC by one SFF-8612 interface

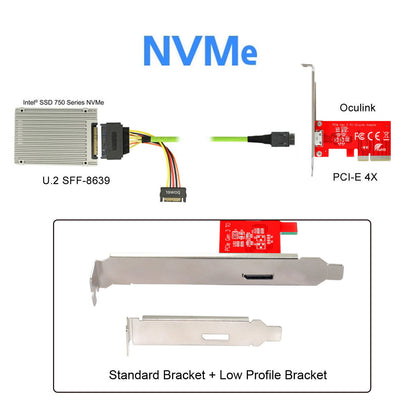

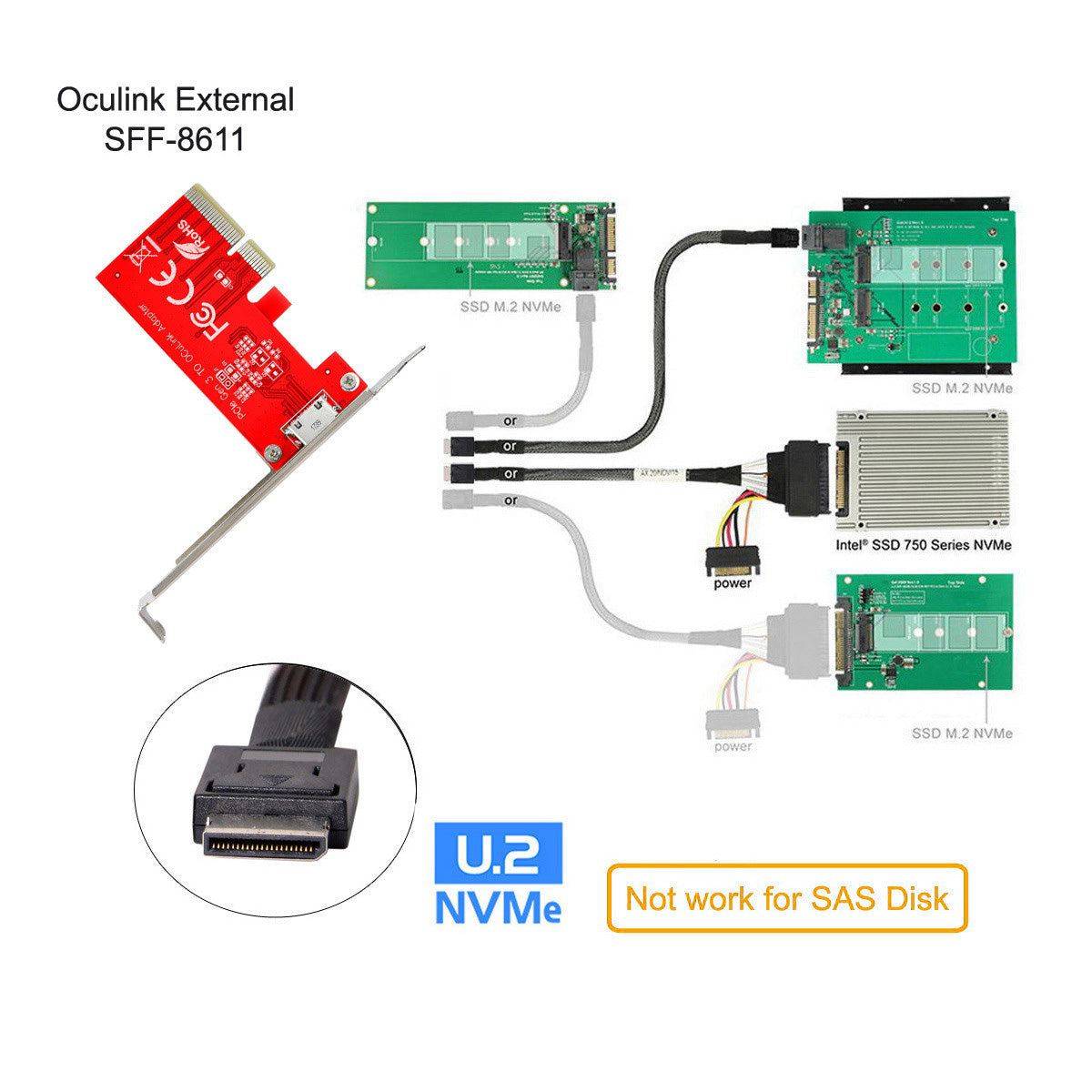

• It can be connected e.g. one SSD by using an optional cable
• The card transmits PCI Express signals using the NVMe protocol
• Bootable, ex UEFI version 2.3.1
• Supports NVM Express (NVMe) 1.2

Specification:

• Connectors:
• 1 x OCuLink SFF-8612 female
• 1 x PCI Express x4, V3.0
• Data transfer rate: up to 32 Gbps
• System requirements:
• For Linux Kernel 4.3 or above
• Windows 8.1/8.1-64bit/10/10-64bit
• PC with one free PCI Express x4/x8/x16/x32 slot

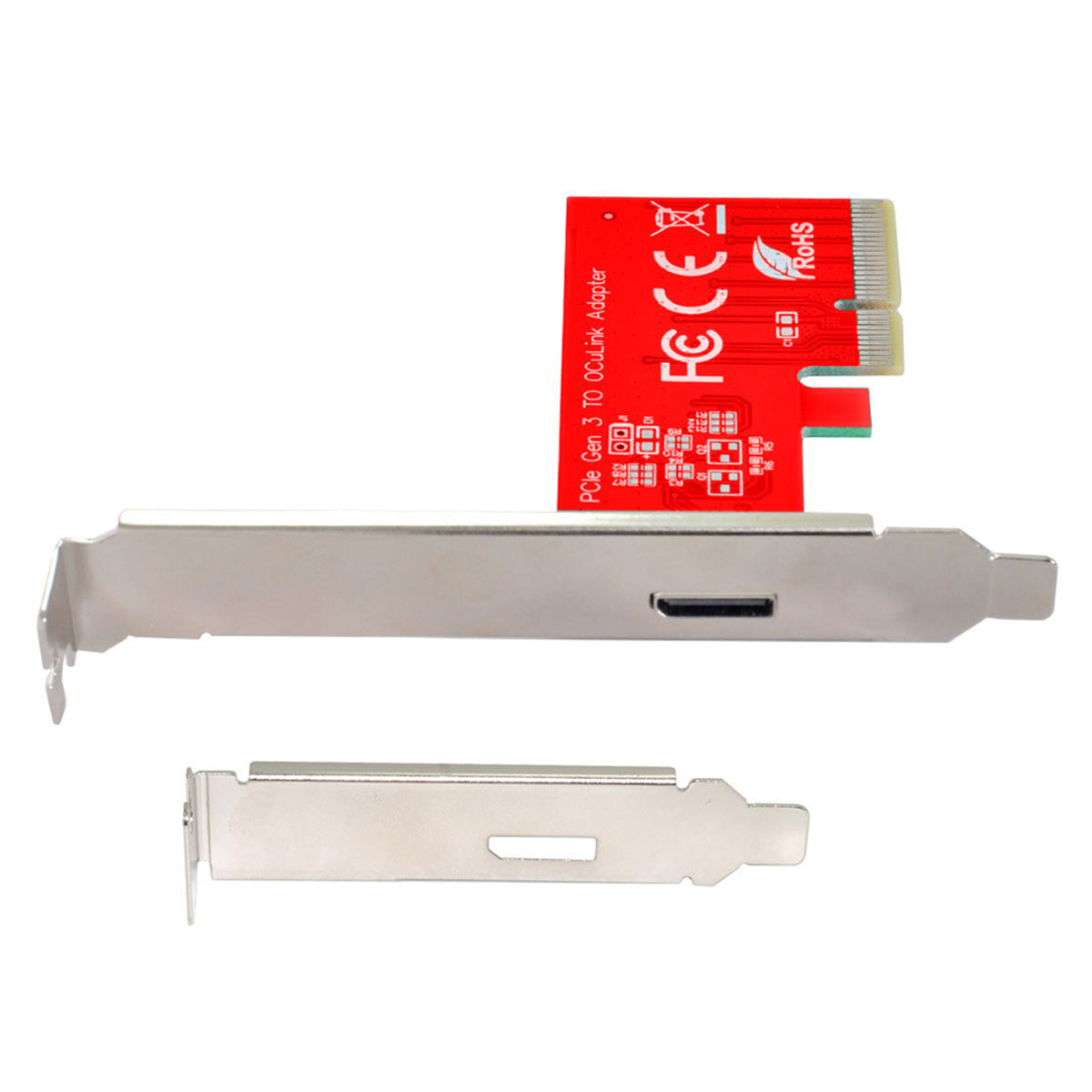

Package included:

• 1 x Adapter

• 1 x Long Bracket

• 1 x Short Bracket
