UniqueBud

SKU:673700011A

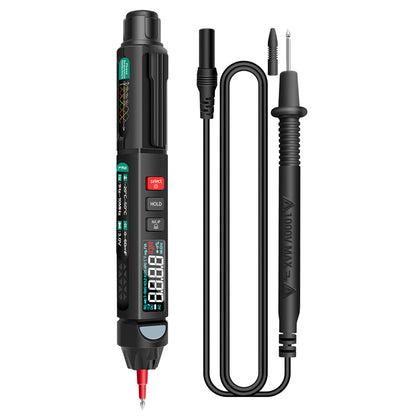

ANENG A3008 6000 Counts Voltage Meter Non Contact AC / DC LCD Display NCV Digital Multimeter Pen

ANENG A3008 6000 Counts Voltage Meter Non Contact AC / DC LCD Display NCV Digital Multimeter Pen

Regular price Rs. 2,326.00
Sale price Rs. 2,326.00 Regular price
Save Rs. -2,326.00 Sold out
Tax included.

  • It is a pocket-sized 3 5/6 digit true effective value, pen-shaped smart multimeter, no need to turn the dial to select the function

  • According to the different input voltage/resistance, the meter will automatically identify and measure

  • The machine has stable performance, high precision, high reliability, clear readings, and overload protection

  • Powered by a 1.5V AAA battery(not include), the meter uses a large LCD display and a boost power supply. Even on the edge of the low 0.8V battery, it can guarantee the backlight and ultra-high brightness of the flashlight

  • The meter is easy to carry and is an extremely popular instrument for users

  • This series of meters can automatically identify DC voltage and AC voltage, resistance, without any change, and can also manually switch to measure capacitance, diode, continuity test, non-contact voltage measurement. Neutral live wire measurement, phase sequence measurement and other parameters

  • This high-performance tool meter is an ideal tool for labs, factories, radio enthusiasts, and families

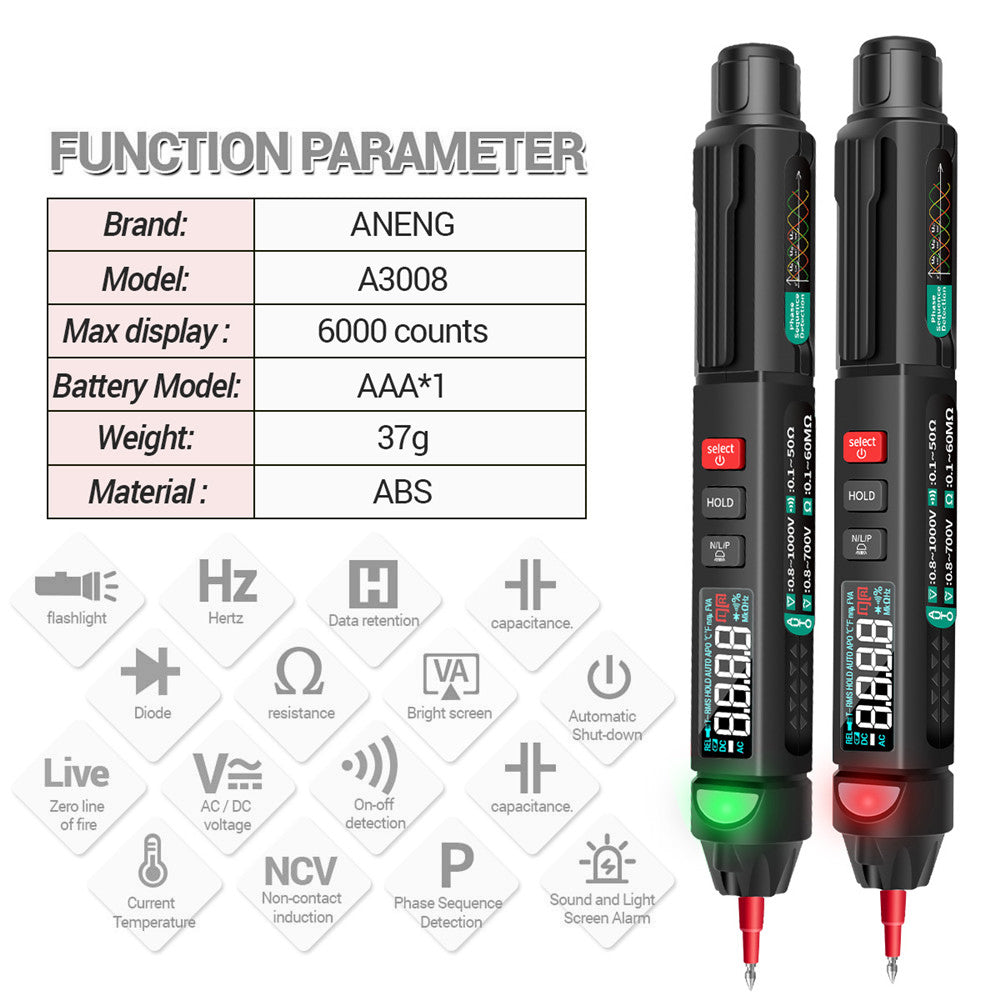

Specification:

  • Display mode: LCD

  • Maximum display: 5999 (3 5/6) digit automatic polarity display

  • Measurement method: Double integral a / d conversion

  • Sampling rate: about 3 times per second

  • Over-range display: Highest position shows "OL"

  • Working environment: (0-40) ℃

  • Relative humidity <80%

  • Power supply: 1 x 1.5V AAA battery (not included)

Function:

  • DC DCV Voltage: Yes

  • AC ACV Voltage: Yes

  • Resistance / Diode / Continuity / Capacitance Test: Yes

  • A3008 Type Non-Contact Phase Sequence Measurement: Yes

  • A3008 Type Color Display: Yes

  • NCV: Yes

  • Neutral / Live Line Test: Yes

  • Full Unit Symbol: Yes

  • Backlight Manual / Auto Power Off: Yes

  • True RMS Measurement: Yes

  • Temperature (℃ / ℉) Normal Temperature Display: Yes

  • Illumination Flashlight: Yes

  • Auto Power Off: Yes

  • DC Voltage / AC Voltage

  • 6000 Range Accuracy of DC Counts Resolution

  • AC 6V ± (0.5% + 4) 0.001V

  • DC / AC 60V ± (0.5% + 4) 0.01 V

  • DC600 / AC600V ± (0.5% + 4) 0.1 V

  • DC1000V / AC700V ± (0.8% + 10 ) 1V

  • Resistance

  • 6000 Range Accuracy of Counts Resolution

  • 600Ω ± (0.8% + 5) 0.1Ω

  • 6kΩ ± (0.8% + 3) 1Ω

  • 60kΩ ± (0.8% + 3) 10Ω

  • 600kΩ ± (0.8% + 3) 100Ω

  • 6MΩ ± (0.8 % + 3) 1kΩ

  • 60MΩ ± (2.5% + 3) 10kΩ

  • Capacitance

  • Accuracy of 6000 range of Counts Resolution

  • 10nF ± (3.5% + 20) 10pF

  • 100nF ± (3.5% + 20) 100pF

  • 1uF ± (3.5% + 20) 1nF

  • 10uF ± (3.5% + 20) 10nF

  • 100uF ± (3.5% + 20)

  • 100nF 1mF ± (3.5% + 20) 1uF

  • 10mF ± (3.5% + 20) 10uF

  • 60mF ± (5% + 3) 100uF

  • Temperature measurement (℃ / ℉)

  • Accuracy of 6000 range of Counts resolution

  • (-20-50)℃ ± (1.0% + 5) <50℃ 1℃

  • (0-122)℉ ± (0.75% + 5) <122℉ 1℉

Package included:

  • 1 x Multimeter

  • 1 x Test Line

  • 1 x English and Chinese User Manual

  • 2 x Gold-Plated Extra Pointed Hands

  • 1 x U-Type Plug

  • 1 x Inline Alligator Clip

  • 1 x Copper-Nickel Plated Long Needle

  • 1 x Copper-Nickel Plated Short Needle

  • 1 x Banana Needle

  • 1 x Copper Nickel Plated Flat Head Pin
