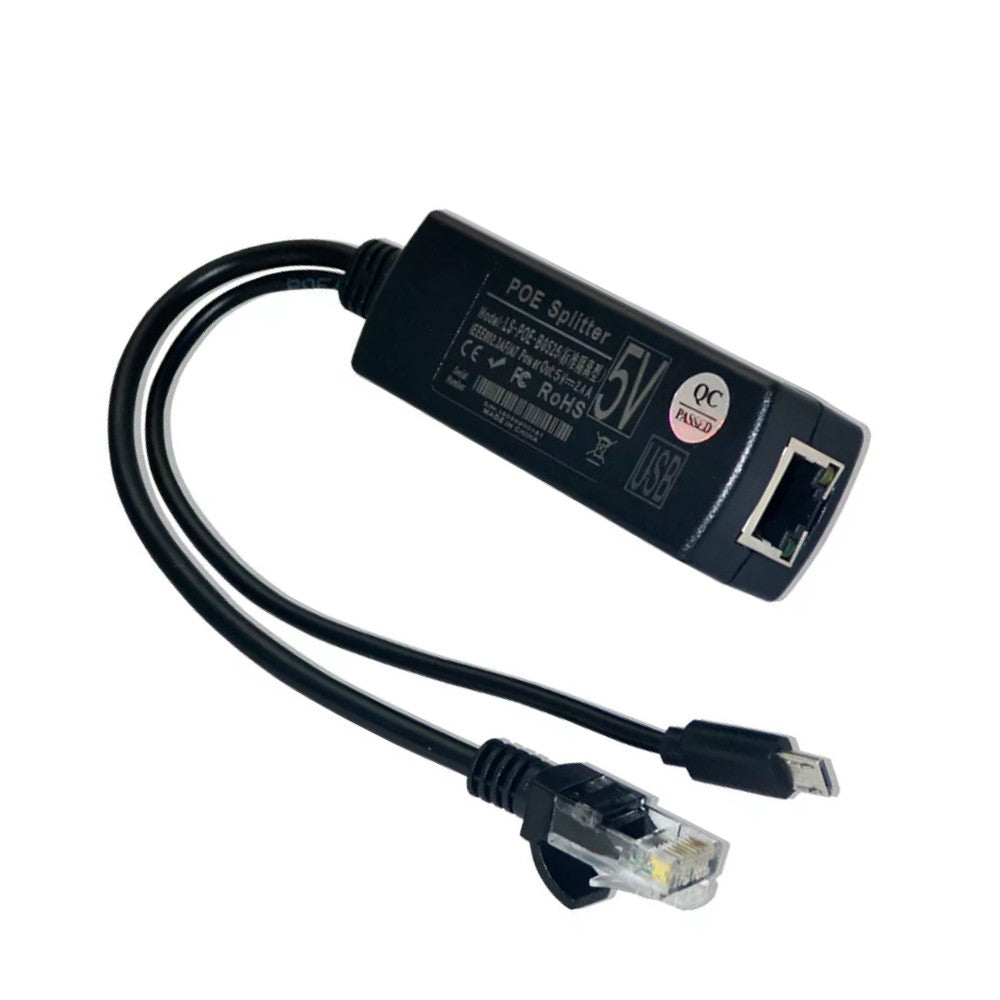

48V to 5V Active PoE Splitter Micro USB Power Plug

SKU: 680100007A

Price:
Sale priceRs. 883.00

Description

  • 12W micro USB Power over Ethernet PoE up to Remote 328 - 492ft (100 - 150m) via Ethernet cable, 802.3af PoE switch or 48v injector is needed

  • Power output port: 5V 2.4A Micro USB power plug

  • Compatible with 44-57V DC voltage, overvoltage protection

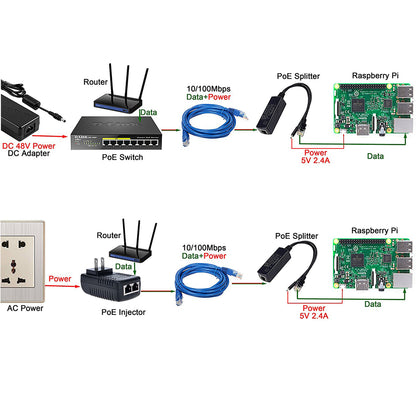

  • Support the IEEE 802.3af the Power over Ethernet PoE Switch, 48V Unsolicited Power Over Ethernet PoE Switch or Ethernet PoE Adapter, 48v injector

  • Suitable for Android tablets, Dropcam, Raspberry Pi - Micro USB

  • RJ45 Female INPUT Port:

  • Support the IEEE 802.3af the Power over Ethernet PoE Switch

  • Support 48V Unsolicited Power Over Ethernet PoE Switch

  • Support 48V Unsolicited Power Over Ethernet PoE Adapter

Specification:

  • Compliant with IEEE802.3af

  • Isolation: 2.5kV

  • Power Input:  DC44~57V

  • Power Output: DC5V 2.4A

  • Data & Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE)

  • Data Output Port: RJ45 Male

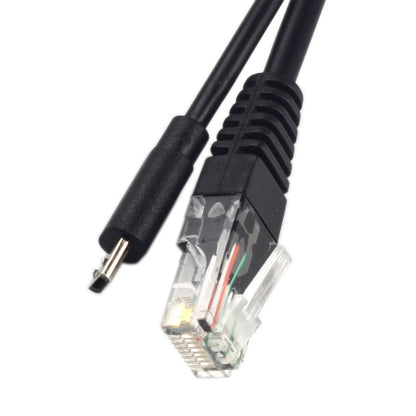

  • Power Output Port: Micro USB Power Plug

  • Data Transfer Rate:  10/100Mbps

  • Devices will be detected before poe input

  • Power Pin: Support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)

  • Body Size: 82 x 28.5x 23mm

  • DC Cable Length: 215mm

  • RJ45 Modular Plug Cable Length: 220mm

  • Weight: 55g

Package included:

  • 1 x 48V to 5V Active PoE Splitter Micro USB Power Plug

  • Other items not included
